Secure TiddlyWiki with Pomerium

What this guide does​

You'll put TiddlyWiki on Node.js behind Pomerium so that Pomerium handles single sign-on and authorization. The TiddlyWiki Node.js server has no login of its own, so Pomerium also forwards the authenticated user's email in a request header. TiddlyWiki trusts that header as the logged-in user, which means edits are attributed to a real identity instead of an anonymous visitor.

When to use this guide​

Use it when you run the TiddlyWiki Node.js server (not the single-file HTML version) and want one authenticated front door for it with your existing identity. If you only need to reach a private TiddlyWiki over the network without browser SSO, a plain TCP route is a simpler fit.

Prerequisites​

This guide assumes you've completed the Quickstart, so you already have Pomerium running and signing users in through the hosted authenticate service.

You also need:

  • Docker and Docker Compose
  • A domain you control for the TiddlyWiki route (this guide uses tiddlywiki.yourdomain.com)
Prefer to self-host the identity provider?

This guide uses the hosted authenticate service so you don't have to run an identity provider (IdP). To run your own instead, follow Keycloak + Pomerium and swap the authenticate_service_url / idp_* settings into the config below.

Configure Pomerium​

In the Zero Console:

  1. Create a Route. In From, enter https://tiddlywiki.yourdomain.com; in To, enter http://tiddlywiki:8080.
  2. Set the policy to Any Authenticated User, or scope it to the people who should have access.
  3. On the Headers tab, enable Pass Identity Headers, then add a JWT claim header that maps the email claim to X-Pomerium-Claim-Email. This is the header TiddlyWiki reads in the next section.

Configure TiddlyWiki​

The TiddlyWiki Node.js server is started with its ListenCommand. Two of its parameters matter here:

  • host=0.0.0.0 so the server accepts connections from the Pomerium container on the Docker network.
  • authenticated-user-header=x-pomerium-claim-email so TiddlyWiki treats the email Pomerium forwards as the logged-in username. This value must match the header name from jwt_claims_headers.

The Compose file below runs a one-shot init step that creates the wiki folder with the server edition, then starts the listener with those parameters.

Run the stack​

The Compose file runs Pomerium Core and TiddlyWiki together (for Zero, drop the pomerium service and use the compose.yaml from the Quickstart with your POMERIUM_ZERO_TOKEN, keeping the tiddlywiki services below):

docker-compose.yaml
services:
  pomerium:
    image: pomerium/pomerium@sha256:e10d1d267af24f581157f485d9b0bc08469e2428675b696a08e42ceb09b2279c # v0.32.7
    volumes:
      - ./config.yaml:/pomerium/config.yaml:ro
      - pomerium-cache:/data
    ports:
      - 443:443
      - 80:80
    networks:
      default: {}
      tiddlywiki-internal: {}
    restart: always

  # One-shot: create the wiki folder with the Node.js server edition if it doesn't
  # already exist, then exit. The guard keeps repeated `docker compose up` runs working.
  tiddlywiki-init:
    image: elasticdog/tiddlywiki@sha256:6fdb8c46c92680c48be5eca5d35cf477b111285481e2ce1717c7dfa131476b17 # v5.1.23
    entrypoint: ['/bin/sh', '-c']
    command:
      - 'test -f /tiddlywiki/mywiki/tiddlywiki.info || tiddlywiki mywiki --init server'
    volumes:
      - tiddlywiki-data:/tiddlywiki
    networks:
      tiddlywiki-internal: {}

  tiddlywiki:
    image: elasticdog/tiddlywiki@sha256:6fdb8c46c92680c48be5eca5d35cf477b111285481e2ce1717c7dfa131476b17 # v5.1.23
    volumes:
      - tiddlywiki-data:/tiddlywiki
    # authenticated-user-header tells TiddlyWiki to trust the email Pomerium
    # forwards as the logged-in user. It must match the jwt_claims_headers name.
    command:
      - mywiki
      - --listen
      - host=0.0.0.0
      - authenticated-user-header=x-pomerium-claim-email
    depends_on:
      tiddlywiki-init:
        condition: service_completed_successfully
    # Internal-only network with no published ports: TiddlyWiki trusts the identity
    # header, so the only thing allowed to reach it is Pomerium.
    networks:
      tiddlywiki-internal: {}
    restart: always

networks:
  tiddlywiki-internal:
    internal: true

volumes:
  pomerium-cache:
  tiddlywiki-data:

Start it:

docker compose up -d

Verify the setup​

  1. The route requires authentication. In a fresh browser, open https://tiddlywiki.yourdomain.com. You should be redirected to sign in, not straight into the wiki.
  2. An allowed user gets in. Sign in. Pomerium redirects you back to TiddlyWiki.
  3. TiddlyWiki recognizes the identity. Open https://tiddlywiki.yourdomain.com/status. The JSON response should show your email as username and anonymous: false, confirming TiddlyWiki trusts the forwarded header.
  4. A disallowed user is blocked. Sign in as a user your policy excludes and open https://tiddlywiki.yourdomain.com. Pomerium denies access, so no identity header is forwarded and you never reach the wiki.

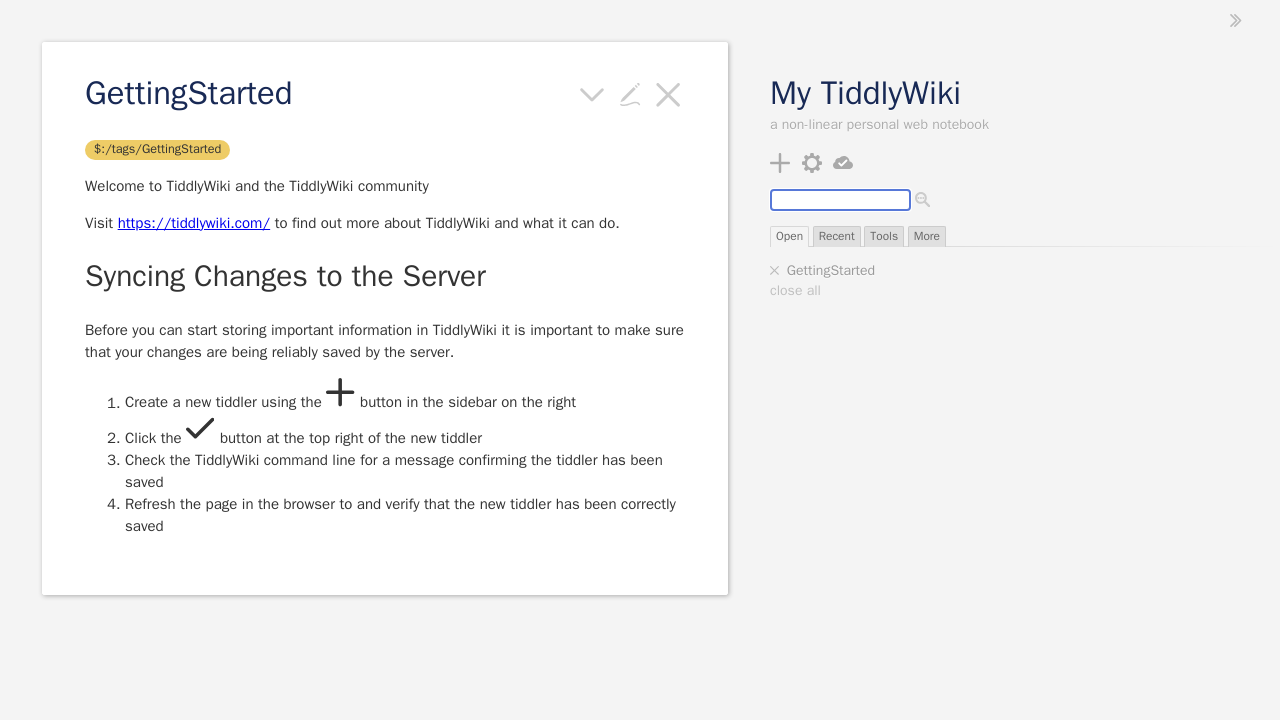

Signed in, the wiki loads with your identity in place of an anonymous visitor:

TiddlyWiki served through Pomerium after single sign-on

Common failure modes​

  • TiddlyWiki always shows an anonymous user. The header name on both sides doesn't match. Make sure authenticated-user-header equals the header in jwt_claims_headers (the comparison is case-insensitive, but the names must otherwise be identical), and that pass_identity_headers is enabled on the route.
  • Wiki folder is not empty on startup. TiddlyWiki's --init fails against a folder that already contains a wiki. The Compose file guards against this so repeated docker compose up runs work; if you adapted the init step, only run it when mywiki/tiddlywiki.info is absent.
  • Redirect loop or certificate errors. Make sure DNS for tiddlywiki.yourdomain.com points at Pomerium and that Pomerium can obtain a TLS certificate. On the Core path, autocert needs ports 80 and 443 reachable for Let's Encrypt; Zero manages certificates for you.

Security considerations​

TiddlyWiki blindly trusts whatever arrives in authenticated-user-header. It does not verify a signature, so the whole model rests on two things being true at once: Pomerium owns that header, and nothing else can reach TiddlyWiki.

  • Pomerium owns the header. A client cannot impersonate someone by sending its own X-Pomerium-Claim-Email. Pomerium overwrites the inbound header with the authenticated identity before the request reaches the upstream, so a request that smuggles attacker@evil.com through Pomerium still arrives stamped with the real signed-in user. TiddlyWiki's /status keeps reporting the genuine identity.
  • Nothing else can reach TiddlyWiki. Because the header is unsigned, a client that connects to TiddlyWiki directly could set the header to anyone. The Compose file puts TiddlyWiki on an internal: true network shared only with Pomerium and publishes no ports for it, so the only path in is through Pomerium. Never publish the TiddlyWiki port. If you need the upstream to cryptographically verify the identity itself rather than relying on network isolation, use a signed JWT instead; TiddlyWiki's header auth does not check signatures.
  • Scope the route policy (group or domain) to who should have access. Every allowed user becomes a named TiddlyWiki editor.
