Secure Synology NAS with Pomerium

What this guide does​

You'll run Pomerium in Docker on a Synology network attached storage (NAS) device so the self-hosted apps on that NAS sit behind single sign-on and per-route authorization. Pomerium authenticates every request before it reaches an app, which lets you expose services to the internet by subdomain (for example httpbin.int.nas.example) without a virtual private network (VPN) and without relying on each app's own login.

Pomerium is lightweight: a single instance typically uses well under 50 MB of memory and very little CPU, so it runs comfortably alongside your other containers on the NAS.

When to use this guide​

Use it when you have a Docker-capable Synology NAS and want one authenticated front door for its web apps. Synology is its own deployment environment: DiskStation Manager (DSM), Synology's operating system, terminates TLS with its built-in nginx and forwards traffic to Pomerium, and you control internet exposure with a port-forward on your router. That hardware and router setup is specific to the NAS, so this guide is written as a single Synology path rather than the usual Zero/Core tabs.

Prerequisites​

This guide assumes you've completed the Quickstart, so you already have a Pomerium Zero account and a cluster token, and Pomerium signs users in through the hosted authenticate service.

You also need:

  • A working Pomerium Zero cluster with its cluster token. If you don't have one, follow the Quickstart first.
  • A Docker-capable Synology product with DSM.
  • A subdomain you control for each app (for example httpbin.int.nas.example), with DNS pointing at your NAS.
  • A wildcard TLS certificate covering those subdomains, for DSM to serve on the public port. DSM's built-in Let's Encrypt support does not issue wildcard certificates (those need DNS validation), so generate one separately if you don't already have it.
Prefer to self-host the identity provider?

This guide uses the hosted authenticate service so you don't have to run an identity provider (IdP) yourself. To run your own instead, follow Keycloak + Pomerium.

Configure the router​

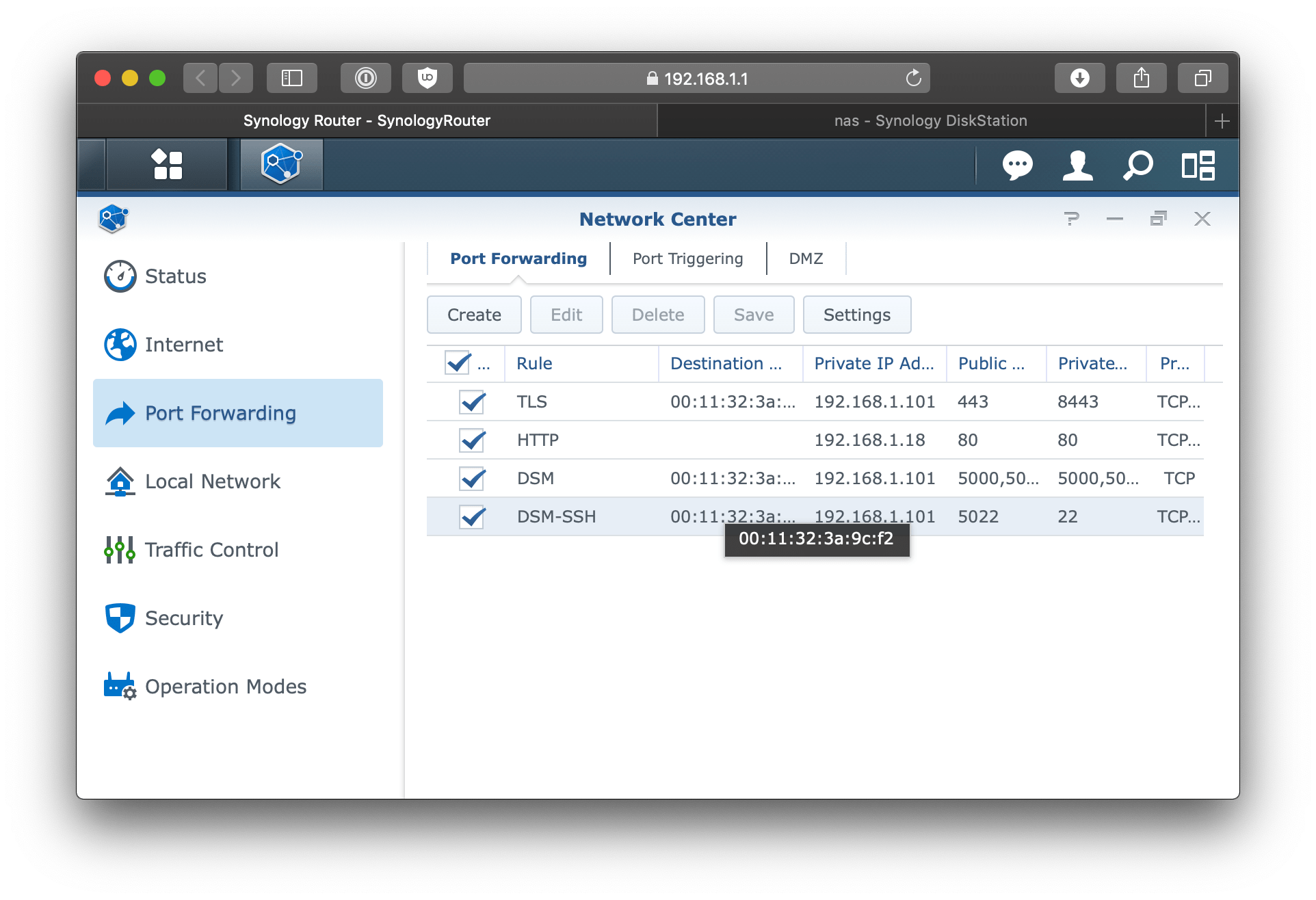

Forward inbound HTTPS traffic from port 443 on your router to a high port on the NAS (this guide uses 8443). DSM will listen on that port and hand requests to Pomerium. The exact screens vary by router model.

Configuring the router firewall rules to forward port 443 to the NAS

Configure DSM​

DSM uses nginx under the hood to proxy incoming requests. Configure it to terminate TLS and forward to the port Pomerium will listen on.

Reverse proxy​

Go to Control Panel > Application Portal > Reverse Proxy and click Create. Set these rules:

FieldValue
Descriptionpomerium
Source ProtocolHTTPS
Source Hostname*
Source Port8443
HTTP/2Enabled
HSTSEnabled
Destination ProtocolHTTP
Destination Hostnamelocalhost
Destination Port32443

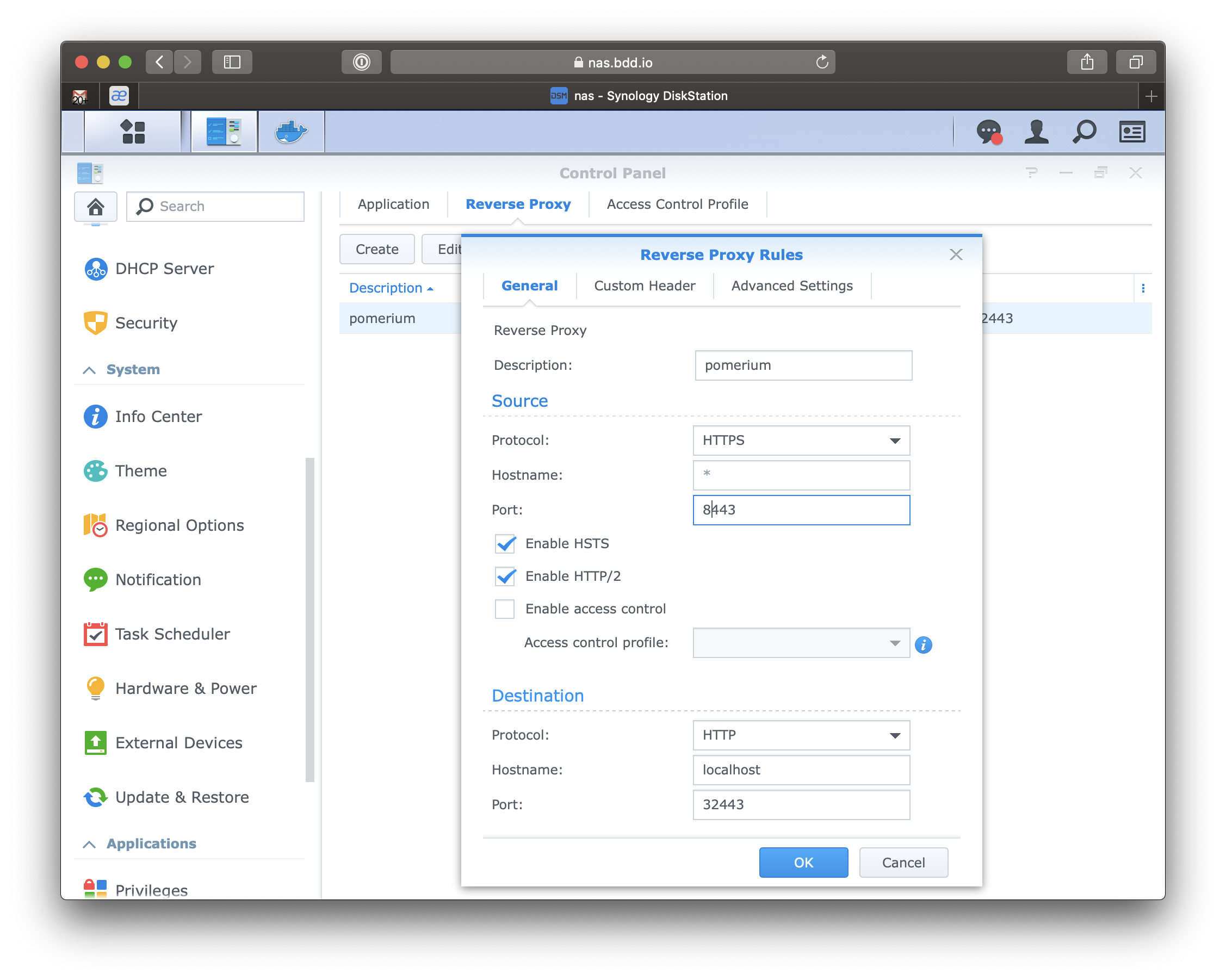

Setting up the DSM reverse proxy rule

This forwards incoming HTTPS traffic to the Pomerium container, which you'll publish on port 32443 later.

Certificate​

Go to Control Panel > Security > Certificate, then Add > Import certificate and import your wildcard certificate chain. Once it appears in the list, click Configure and assign it to the reverse-proxy service so DSM uses it for traffic on 8443:

ServiceCertificate
*:8443*.int.nas.example

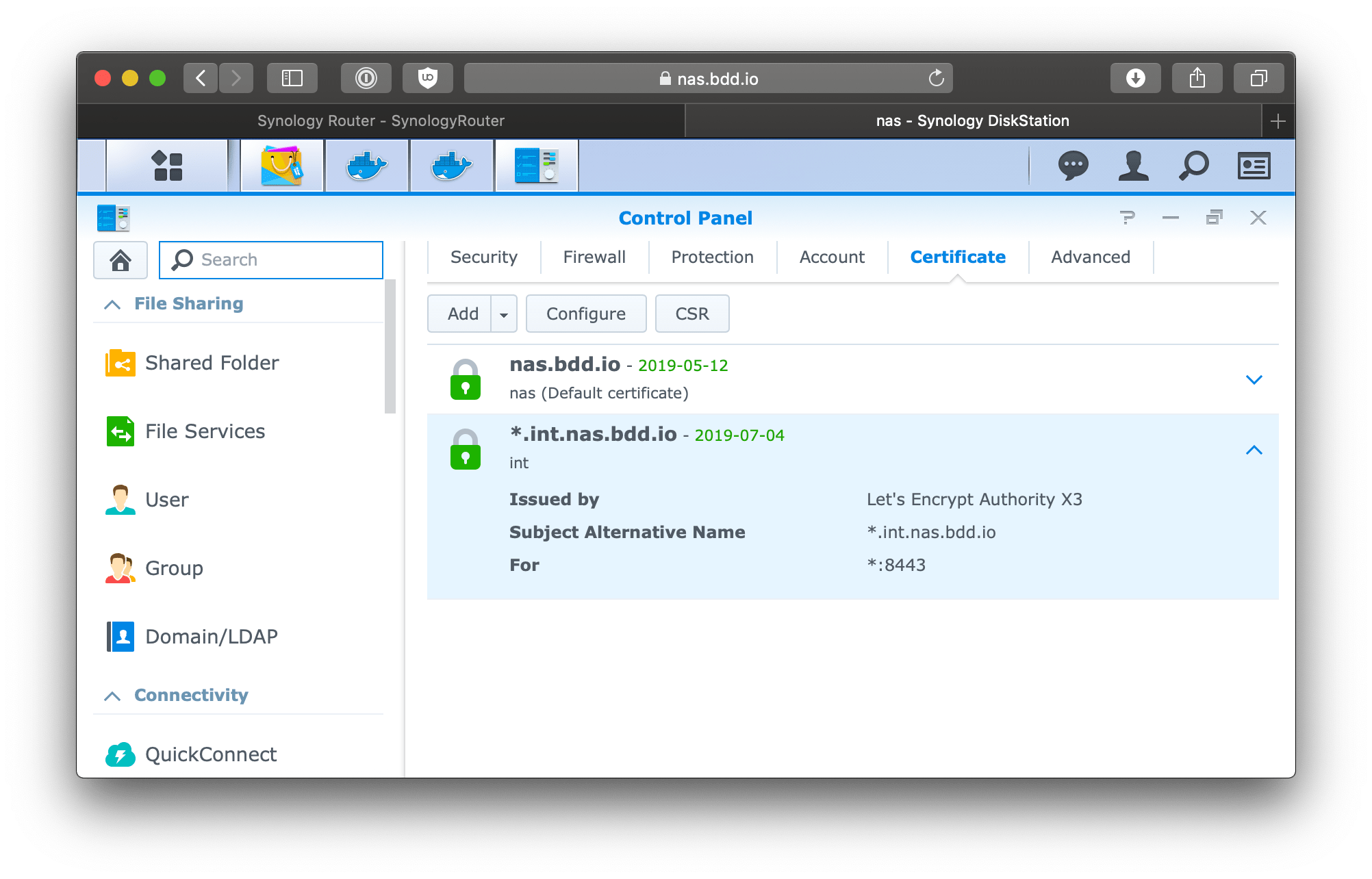

Assigning the wildcard certificate to the reverse-proxy service in DSM

Configure the upstream app​

Pick any app on your NAS to protect. This guide uses httpbin, a small test server, but it could be any self-hosted app: a wiki, a download client, Plex, and so on.

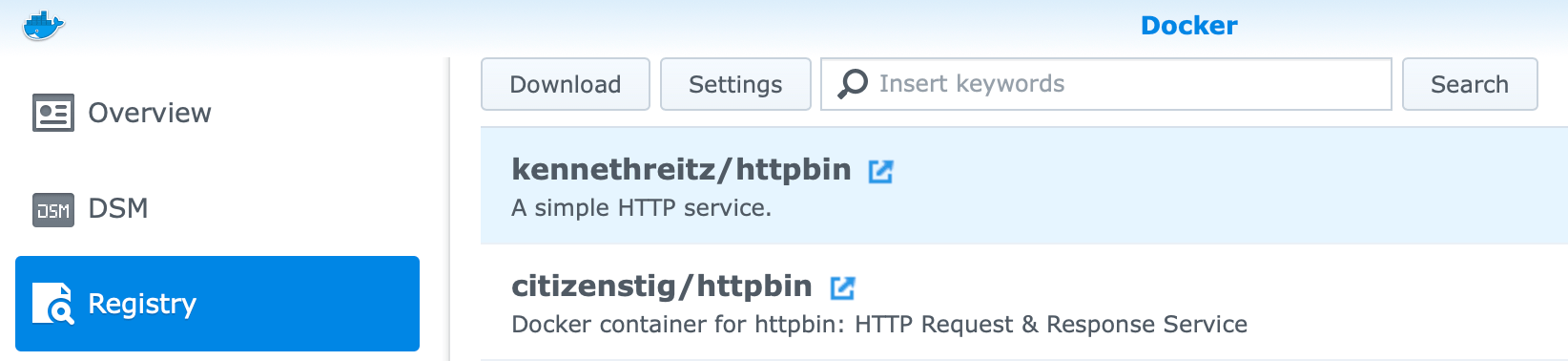

In the DSM Container Manager (formerly Docker), open the Registry, search for kennethreitz/httpbin, and download it. Then go to Image, select it, and launch a container named httpbin, keeping the defaults. This runs a small web server on port 80; the container name becomes the network alias Pomerium routes to.

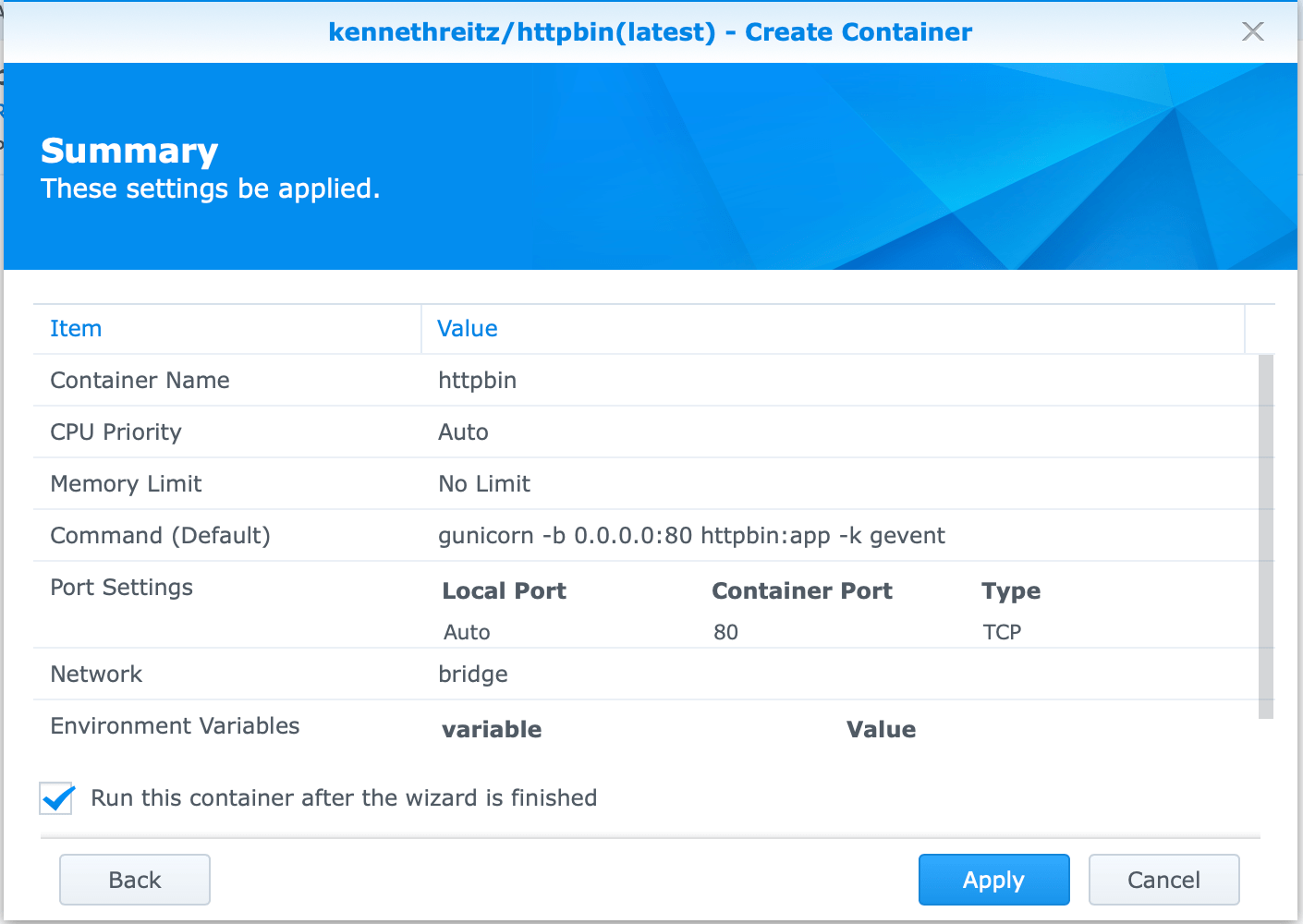

Launching the httpbin container in DSM

Add the route in the Zero Console​

In the Zero Console:

  1. Create a Route. In From, enter https://httpbin.int.nas.example; in To, enter http://httpbin. The To value is the container alias you'll link to Pomerium on the NAS in the next step.
  2. Set the policy to the users, groups, or domain that should have access. Scope it deliberately rather than allowing everyone.
  3. On the Headers tab, enable Pass Identity Headers so the authenticated user's identity reaches the app, then save.

Zero manages the hosted authenticate service, your IdP connection, and the route's signing key, so there is nothing else to wire up for login.

Configure Pomerium​

Download the official pomerium/pomerium image from the DSM Registry. In the tag dialog, choose a specific version tag (for example v0.32.7) rather than latest, so a registry update can't change your proxy out from under you.

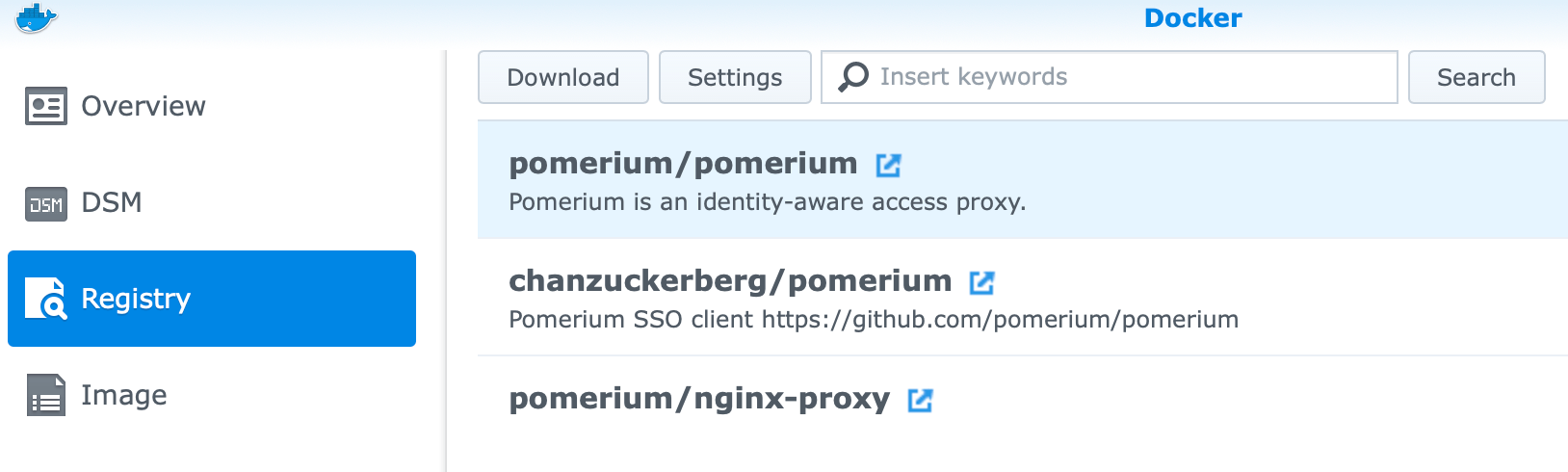

Downloading the Pomerium image from the DSM registry

Launch the container​

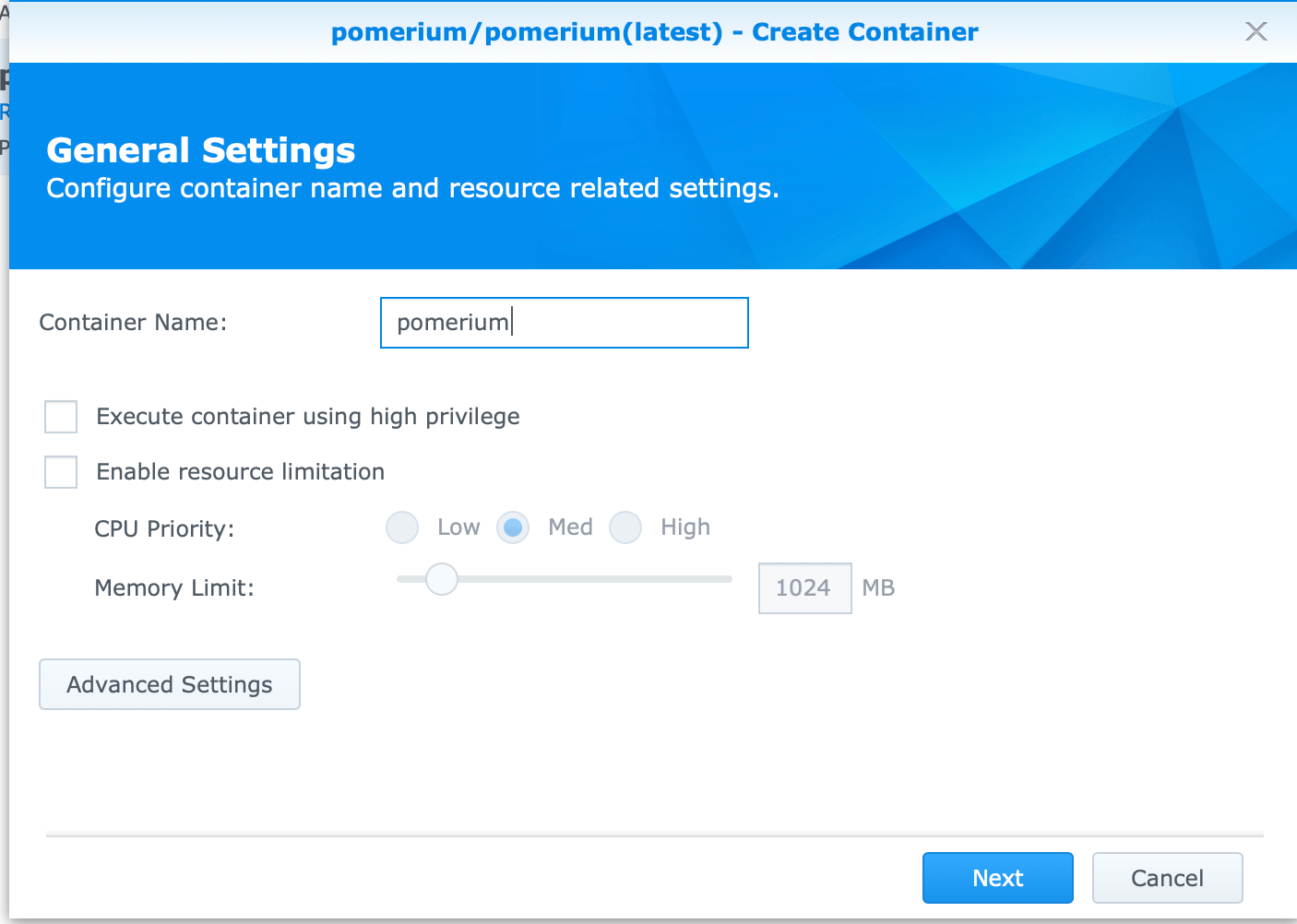

In Image, select pomerium/pomerium and click Launch, naming the container pomerium. Open Advanced Settings and configure:

  • Port Settings: map local port 32443 to container port 443 (TCP). This is the port DSM's reverse proxy forwards to.

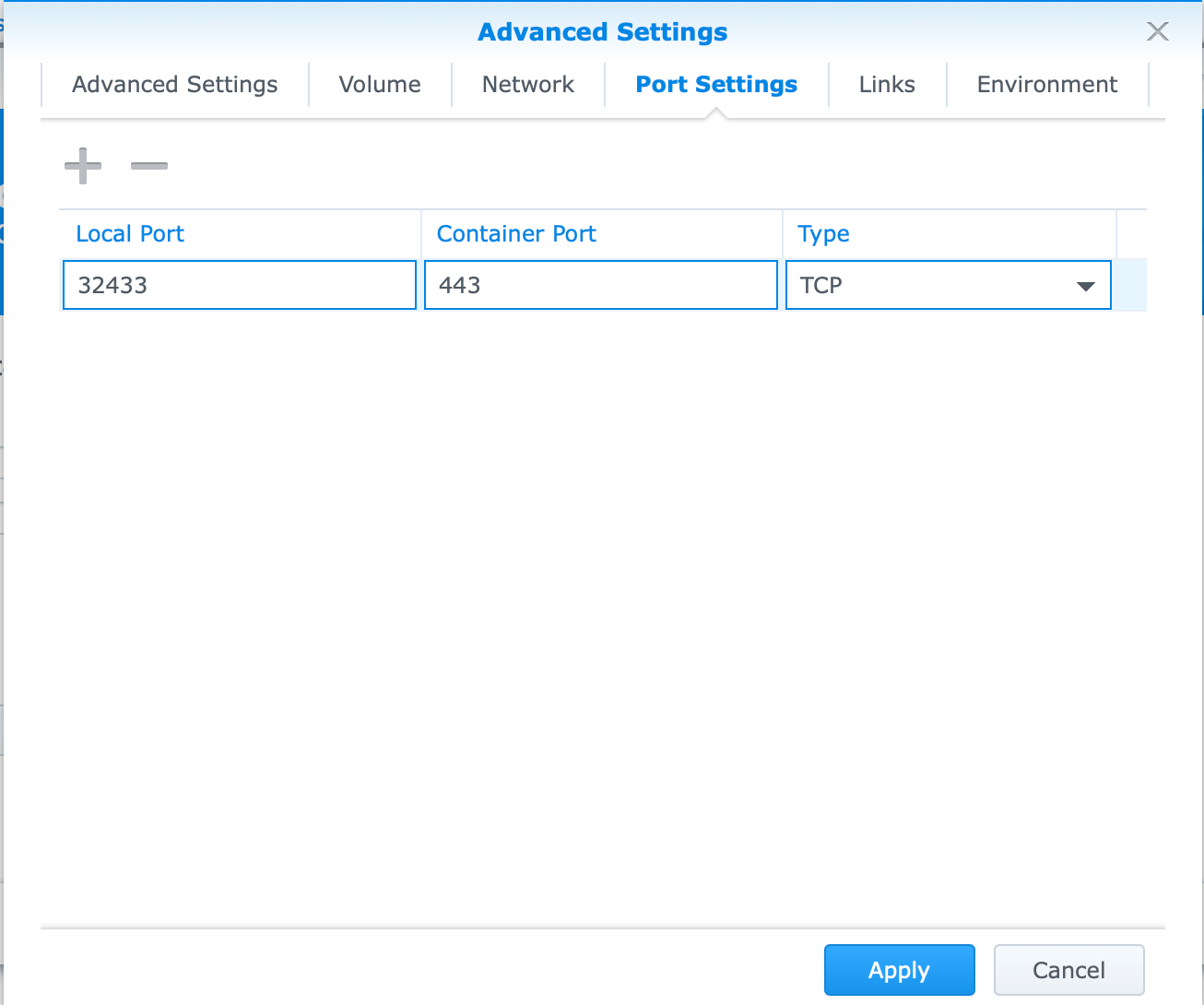

    Mapping the Pomerium container port settings in DSM

  • Links: add a link to the httpbin container with the alias httpbin.

    caution

    The alias must match the host in your route's To value, or Pomerium can't reach the app.

    Linking the httpbin container to Pomerium with a matching alias

  • Environment: set the variables below.

    VariableValue
    POMERIUM_ZERO_TOKENthe cluster token from your Zero Console
    INSECURE_SERVERTRUE (DSM has already terminated TLS, so the container listens over HTTP)

The Zero token connects this container to your cluster and pulls down the route and policy you defined in the Console, so you don't manage routes or secrets on the NAS itself.

Click Launch. If everything is configured correctly the container starts and stays running; if not, check the container's Log tab.

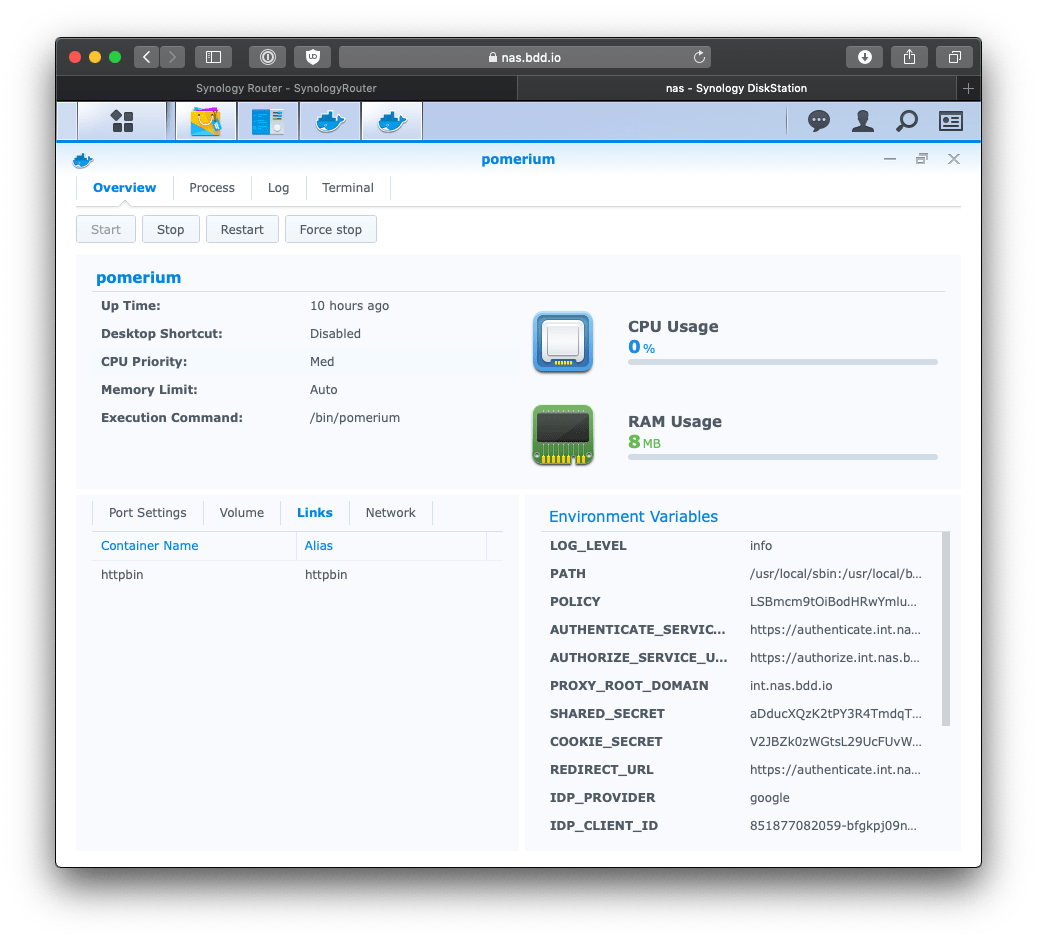

The running Pomerium container in DSM

Verify the setup​

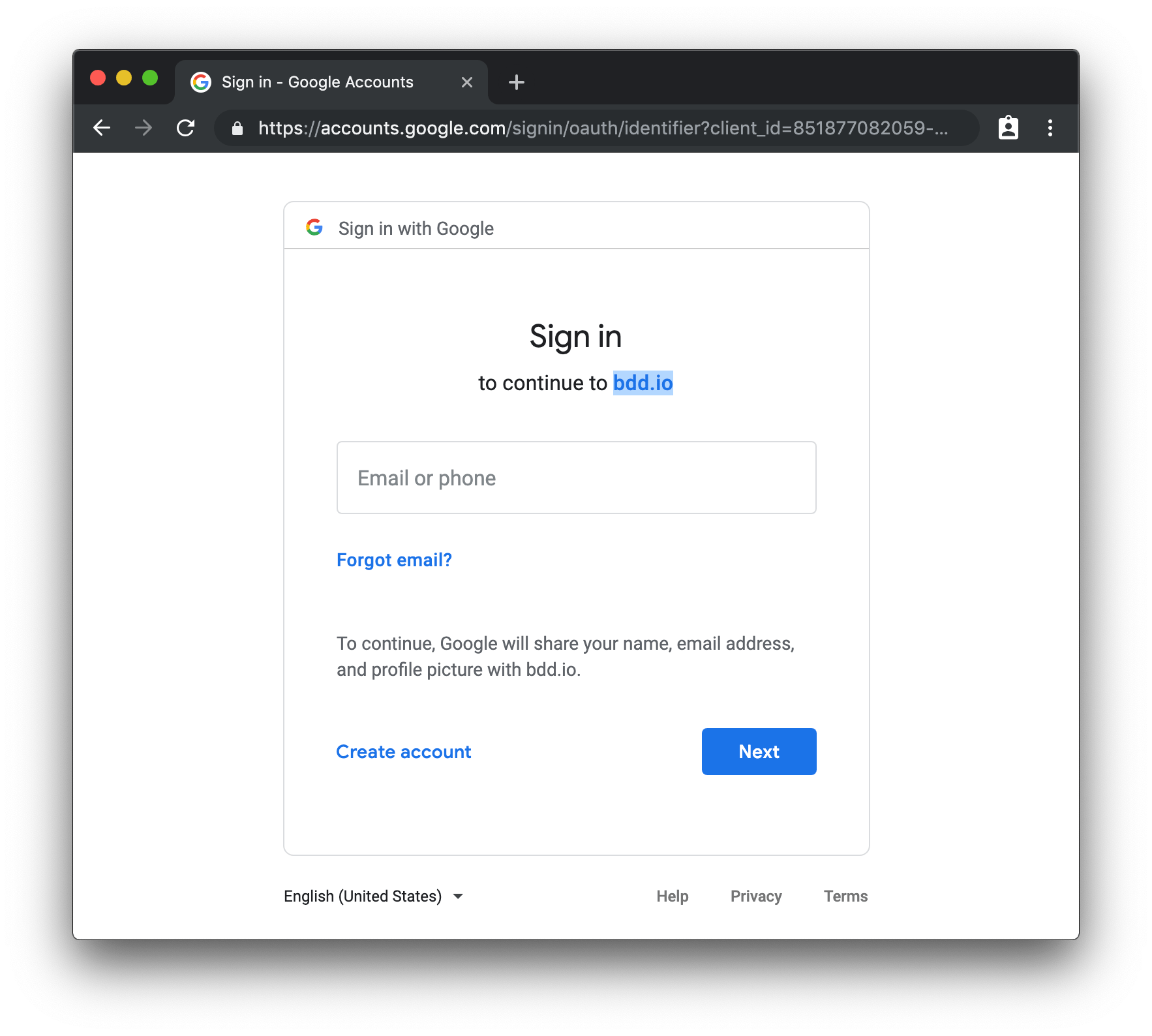

  1. The route requires authentication. In a fresh browser, open https://httpbin.int.nas.example. You should be redirected to sign in, not straight into the app.

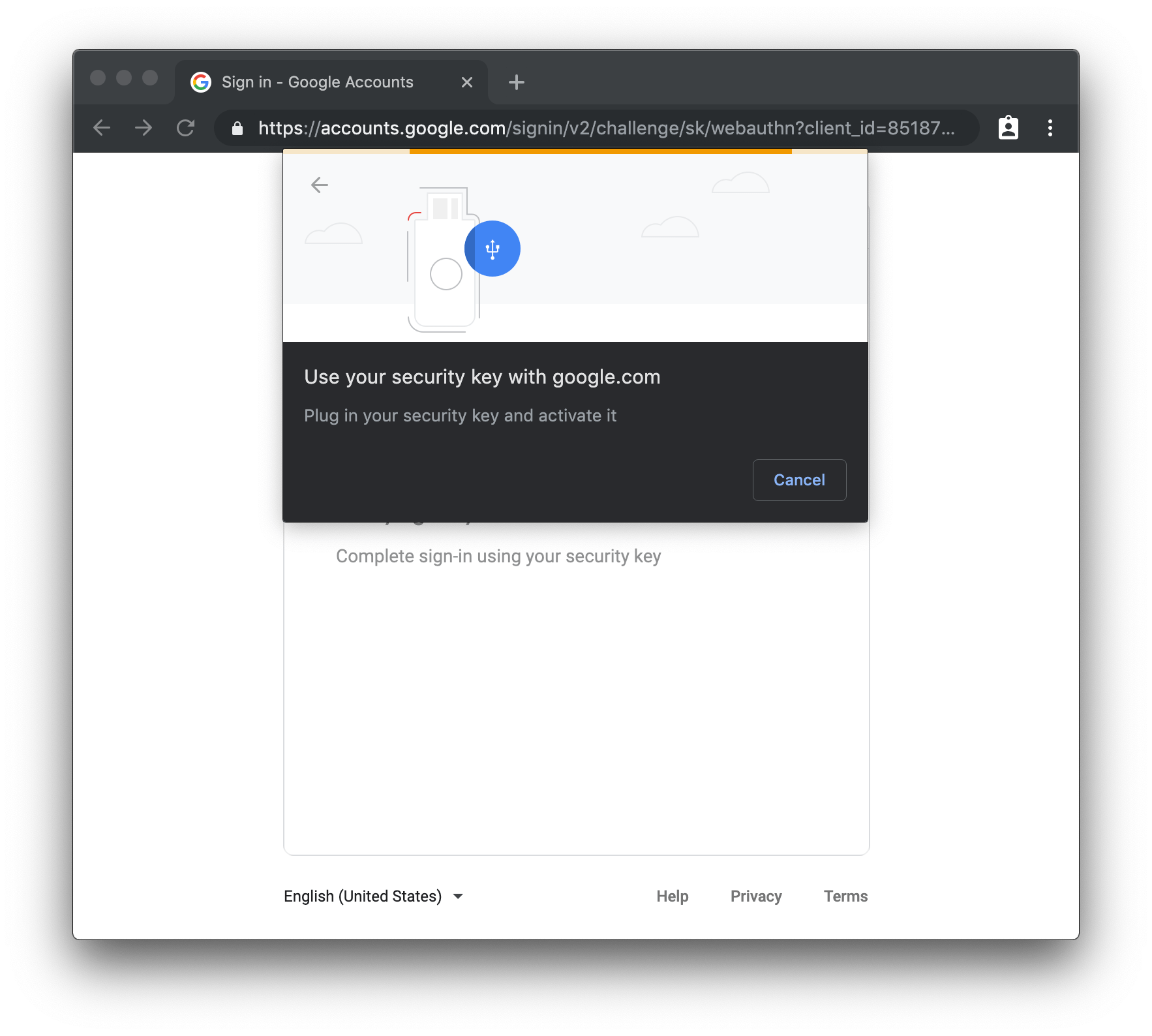

    Pomerium redirecting to the identity provider login

  2. An allowed user gets in. Sign in (completing multi-factor authentication if your IdP requires it). Pomerium redirects you back to httpbin.

    Reaching httpbin after a successful login

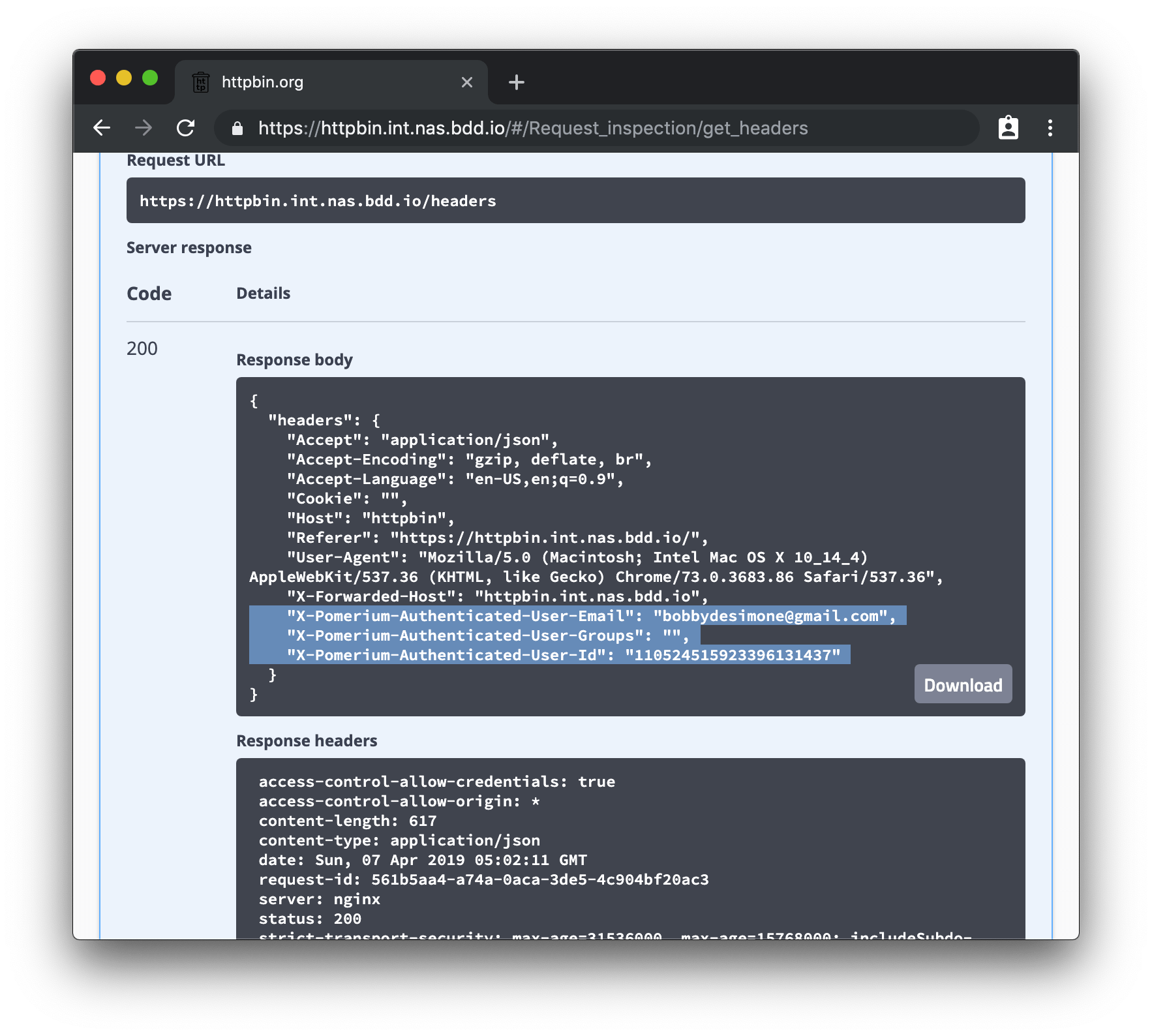

  3. Identity is available. Open https://httpbin.int.nas.example/.pomerium/ to see the signed-in user Pomerium is forwarding.

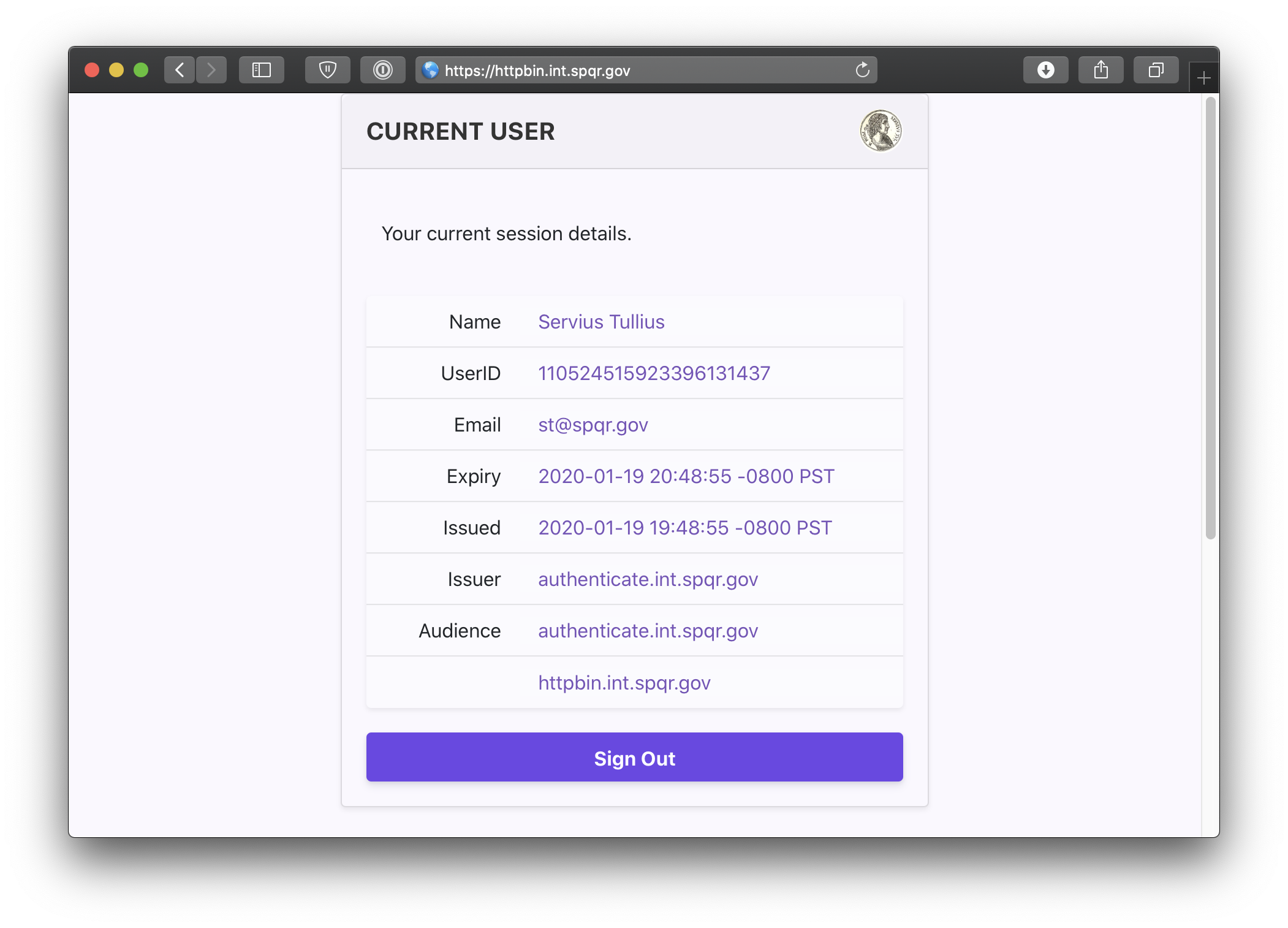

    The Pomerium endpoint showing the current user

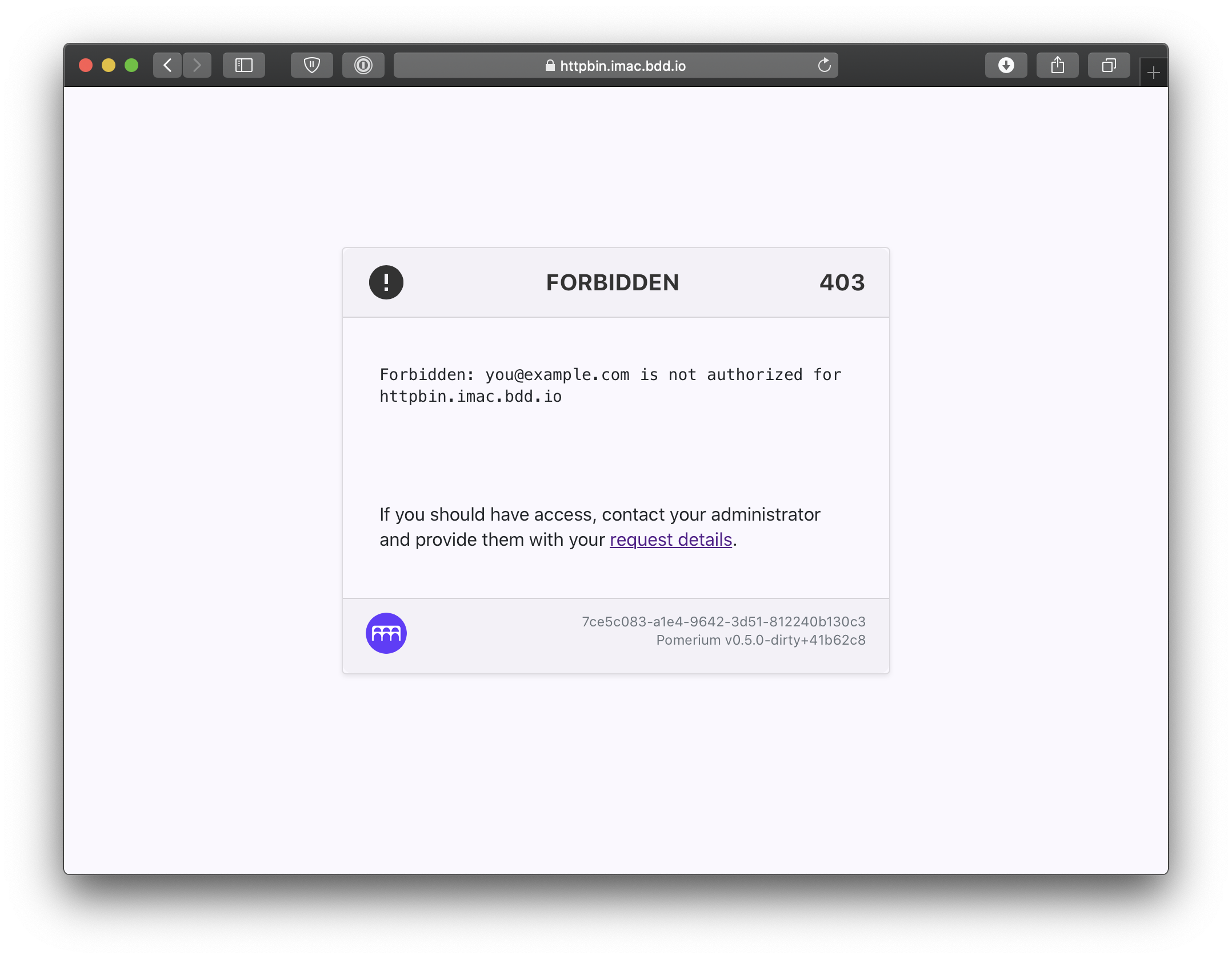

  4. An unauthorized user is denied. Sign in with an account your policy doesn't allow. You should get a 403.

    A 403 page for an unauthorized user

Common failure modes​

  • Certificate or TLS errors in the browser. DSM must serve your wildcard certificate on 8443. Confirm the certificate is imported and assigned to the *:8443 service, and that DNS for the subdomain resolves to your NAS.
  • 502 or connection refused after login. Pomerium can't reach the upstream. Check the Links alias matches the To host on the route and that the app container is running.
  • Redirect loop or sign-in errors. Confirm the route's From host matches the one defined in the Zero Console and is served by this cluster, that it's covered by your wildcard certificate, and that it's reachable through the same DSM reverse proxy.
  • Everything returns 404. The requested host doesn't match any route's From. Verify the subdomain and the route in the Zero Console.

Security considerations​

  • With identity headers enabled, the upstream app trusts the identity Pomerium forwards, so the app must not be reachable except through Pomerium. Keep the upstream container off published NAS ports and only link it to Pomerium on the internal Docker network. The only port exposed to the router should be the one DSM forwards to Pomerium.
  • Scope each route's policy to the specific users, groups, or domain that should have access. Widen it deliberately, not by default.
  • INSECURE_SERVER=TRUE only disables TLS inside the container because DSM already terminated it. External traffic is still TLS-terminated by DSM, so don't expose the 32443 container port to the internet.

Operations​

  • Update the image. Update on your own schedule by pulling a newer pomerium/pomerium tag and recreating the container, rather than tracking latest.
  • Update a route. Edit the route or policy in the Zero Console; the connected container picks up the change without recreating the container.
  • Rotate the token. If the cluster token may be exposed, rotate it in the Zero Console and update the container's POMERIUM_ZERO_TOKEN environment variable.
  • Tear down. Stop and remove the pomerium and httpbin containers in Container Manager, then delete the DSM reverse-proxy rule and the router port-forward to stop exposing the service.
