Secure Forgejo with Pomerium

What this guide does​

You'll put Forgejo, a self-hosted Git service, behind Pomerium so that Pomerium handles single sign-on and authorization, then forwards the user's identity to Forgejo as request headers. Forgejo trusts those headers (reverse-proxy authentication), signs the user in, and can auto-create the account on first visit. The result is single sign-on for the Forgejo web UI with no second password. The same setup also works with Gitea.

This guide configures web UI sign-in only

It leaves Forgejo's API reverse-proxy authentication disabled. Git operations, API clients, automations, and SSH access still need Forgejo access tokens or SSH keys.

When to use this guide​

Use it when you want one front door for Forgejo with your existing identity, and you want Forgejo to provision and sign users in from Pomerium instead of maintaining its own password directory. Forgejo does not support Pomerium's signed-JWT login mode, so this guide relies on header-based reverse-proxy authentication; read the Security considerations before you deploy, because that mode trusts the identity header from any peer that can reach Forgejo.

Prerequisites​

This guide assumes you've completed the Quickstart, so you already have Pomerium running and signing users in through the hosted authenticate service.

You also need:

  • Docker and Docker Compose
  • A domain you control for the Forgejo route (this guide uses forgejo.yourdomain.com)
Prefer to self-host the identity provider?

This guide uses the hosted authenticate service so you don't have to run an identity provider (IdP). To run your own instead, follow Keycloak + Pomerium and swap the authenticate_service_url / idp_* settings into the config below.

Configure Pomerium​

Pomerium forwards the user's sub, email, and name claims as request headers. Forgejo usernames can't contain every character that's valid in an email address, so this uses the stable OIDC sub claim for the username and carries the real address in X-Pomerium-Claim-Email.

In the Zero Console:

  1. Create a Route. In From, enter https://forgejo.<your-starter-domain>; in To, enter http://forgejo:3000.
  2. Set the policy to the user or domain that should reach Forgejo. Reverse-proxy auth trusts the forwarded header, so this policy is your real access gate; keep it tight.
  3. On the Headers tab, enable Pass Identity Headers, then add these JWT Claim Headers so the claims arrive under the names Forgejo expects below: X-Pomerium-Sub from sub, X-Pomerium-Claim-Email from email, and X-Pomerium-Claim-Name from name. Save.

Configure Forgejo​

Configure Forgejo to trust and consume the headers. These map to app.ini settings, supplied as FORGEJO__<section>__<KEY> environment variables in the Compose file below. The key settings:

  • ENABLE_REVERSE_PROXY_AUTHENTICATION makes Forgejo read the identity header.
  • ENABLE_REVERSE_PROXY_AUTO_REGISTRATION creates the account on first visit; ..._EMAIL and ..._FULL_NAME populate it from the other headers.
  • REVERSE_PROXY_AUTHENTICATION_USER / _EMAIL / _FULL_NAME must match the header names Pomerium emits (Forgejo's defaults are X-WEBAUTH-USER / -EMAIL / -FULLNAME).
  • DISABLE_REGISTRATION: false allows trusted external provisioning, while ALLOW_ONLY_EXTERNAL_REGISTRATION: true and SHOW_REGISTRATION_BUTTON: false keep the local sign-up form closed.

REVERSE_PROXY_TRUSTED_PROXIES only tells Forgejo how to derive the real client IP from X-Forwarded-For for its logs and rate limiting. It does not restrict which peer the identity header is trusted from; see Security considerations.

Run the stack​

The Compose file runs Pomerium Core and Forgejo together (for Zero, drop the pomerium service and use the compose.yaml from the Quickstart with your POMERIUM_ZERO_TOKEN, keeping the forgejo service and its network below):

docker-compose.yaml
services:
  pomerium:
    image: pomerium/pomerium@sha256:e10d1d267af24f581157f485d9b0bc08469e2428675b696a08e42ceb09b2279c # v0.32.7
    volumes:
      - ./config.yaml:/pomerium/config.yaml:ro
      - pomerium-cache:/data
    ports:
      - 443:443
      - 80:80
    networks:
      default: {}
      forgejo-internal:
        ipv4_address: 172.30.0.2
    restart: always

  forgejo:
    image: codeberg.org/forgejo/forgejo@sha256:db04c7114b656f896e206ba3873fe8d3a7adf2daa44907037f0274f4ba653fb9 # v15
    # Reverse-proxy auth trusts the identity header from ANY peer that can reach
    # forgejo:3000, and REVERSE_PROXY_TRUSTED_PROXIES does NOT change that (it only
    # affects X-Forwarded-For parsing). Network isolation is the trust boundary:
    # forgejo sits on an internal-only network with Pomerium and nothing else.
    networks:
      forgejo-internal: {}
    volumes:
      - forgejo-data:/data
    environment:
      FORGEJO__server__ROOT_URL: 'https://forgejo.yourdomain.com/'
      FORGEJO__database__DB_TYPE: 'sqlite3'
      FORGEJO__security__INSTALL_LOCK: 'true'
      FORGEJO__service__REQUIRE_SIGNIN_VIEW: 'true'

      # Reverse-proxy SSO: Forgejo trusts the identity header Pomerium forwards.
      FORGEJO__service__ENABLE_REVERSE_PROXY_AUTHENTICATION: 'true'
      # Web UI sign-in only. Keep header auth off the API so tokens/SSH stay the
      # path for Git and API clients (set explicitly, not relying on the default).
      FORGEJO__service__ENABLE_REVERSE_PROXY_AUTHENTICATION_API: 'false'
      FORGEJO__service__ENABLE_REVERSE_PROXY_AUTO_REGISTRATION: 'true'
      FORGEJO__service__ENABLE_REVERSE_PROXY_EMAIL: 'true'
      FORGEJO__service__ENABLE_REVERSE_PROXY_FULL_NAME: 'true'
      # Allow provisioning via the proxy, but keep the local sign-up form closed.
      FORGEJO__service__DISABLE_REGISTRATION: 'false'
      FORGEJO__service__ALLOW_ONLY_EXTERNAL_REGISTRATION: 'true'
      FORGEJO__service__SHOW_REGISTRATION_BUTTON: 'false'

      # Header names must match what Pomerium sends (config.yaml above).
      FORGEJO__security__REVERSE_PROXY_AUTHENTICATION_USER: 'X-Pomerium-Sub'
      FORGEJO__security__REVERSE_PROXY_AUTHENTICATION_EMAIL: 'X-Pomerium-Claim-Email'
      FORGEJO__security__REVERSE_PROXY_AUTHENTICATION_FULL_NAME: 'X-Pomerium-Claim-Name'
      # For X-Forwarded-For client-IP parsing, list only Pomerium. This does not
      # restrict which peer the reverse-proxy auth header is trusted from. Must
      # be an IP/CIDR, not a hostname; the Compose network gives Pomerium a
      # fixed address.
      FORGEJO__security__REVERSE_PROXY_TRUSTED_PROXIES: '172.30.0.2/32'
      FORGEJO__security__REVERSE_PROXY_LIMIT: '1'
    restart: always

networks:
  # internal: true keeps Forgejo off the host and reachable only by Pomerium, which
  # the reverse-proxy-auth trust model requires. The fixed subnet gives Pomerium a
  # stable address for REVERSE_PROXY_TRUSTED_PROXIES.
  forgejo-internal:
    internal: true
    ipam:
      config:
        - subnet: 172.30.0.0/24

volumes:
  pomerium-cache:
  forgejo-data:

Start it:

docker compose up -d

The Compose file pins Forgejo and Pomerium by image digest so the stack is reproducible; the digest comment notes the Forgejo version (v15). Update the digests when you upgrade Forgejo, then sign in again to confirm it still works. To tear the stack down and delete the Forgejo data volume (all repositories and state), run docker compose down -v.

Verify the setup​

  1. The route requires authentication. In a fresh browser, open https://forgejo.yourdomain.com. You should be redirected to sign in, not straight into Forgejo.

  2. An allowed user gets in. Sign in. Pomerium redirects you back to Forgejo.

  3. SSO and auto-provisioning work. Forgejo signs you in and creates your account from the headers, with no Forgejo password. The account carries your real email; its username comes from the configured username claim, and its full name is populated only if your identity provider supplies a name claim. You land on the authenticated Forgejo dashboard, signed in as your Pomerium identity:

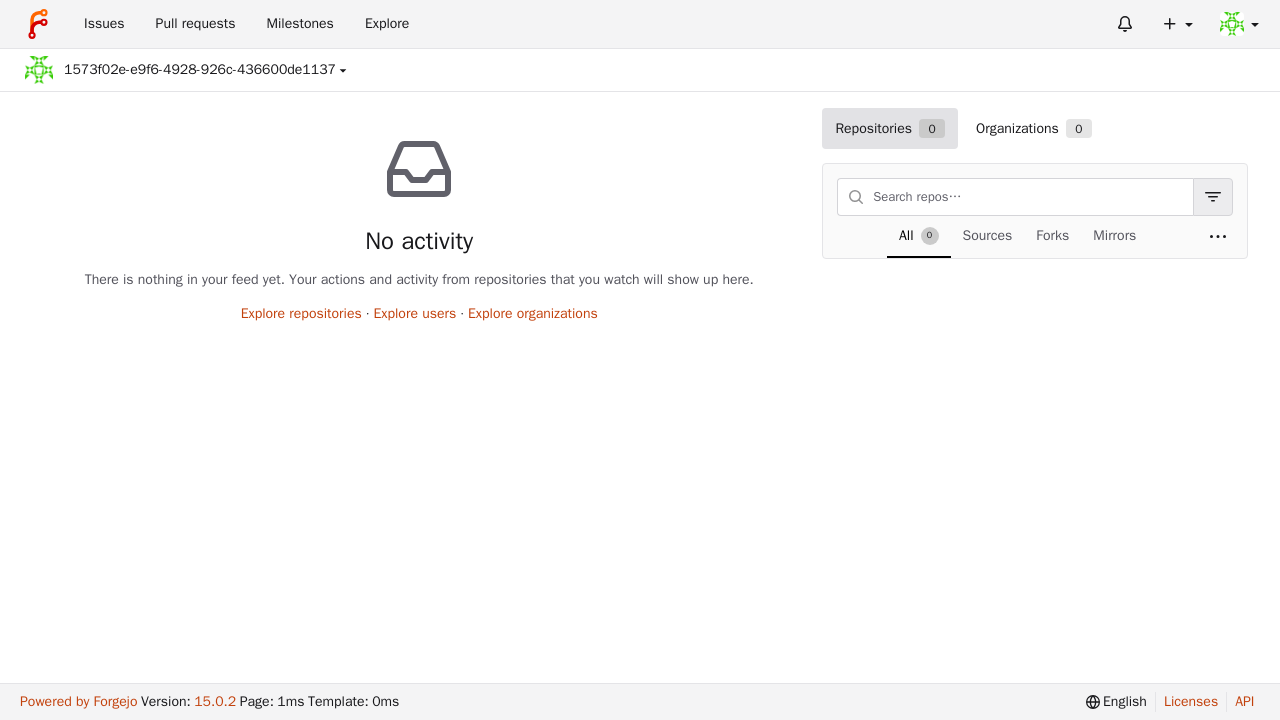

    The Forgejo dashboard, signed in as the auto-provisioned Pomerium identity

    Open your Forgejo profile to confirm the account was provisioned from your Pomerium identity: the username comes from your username claim and the email matches the one Pomerium forwarded, with no Forgejo password ever set.

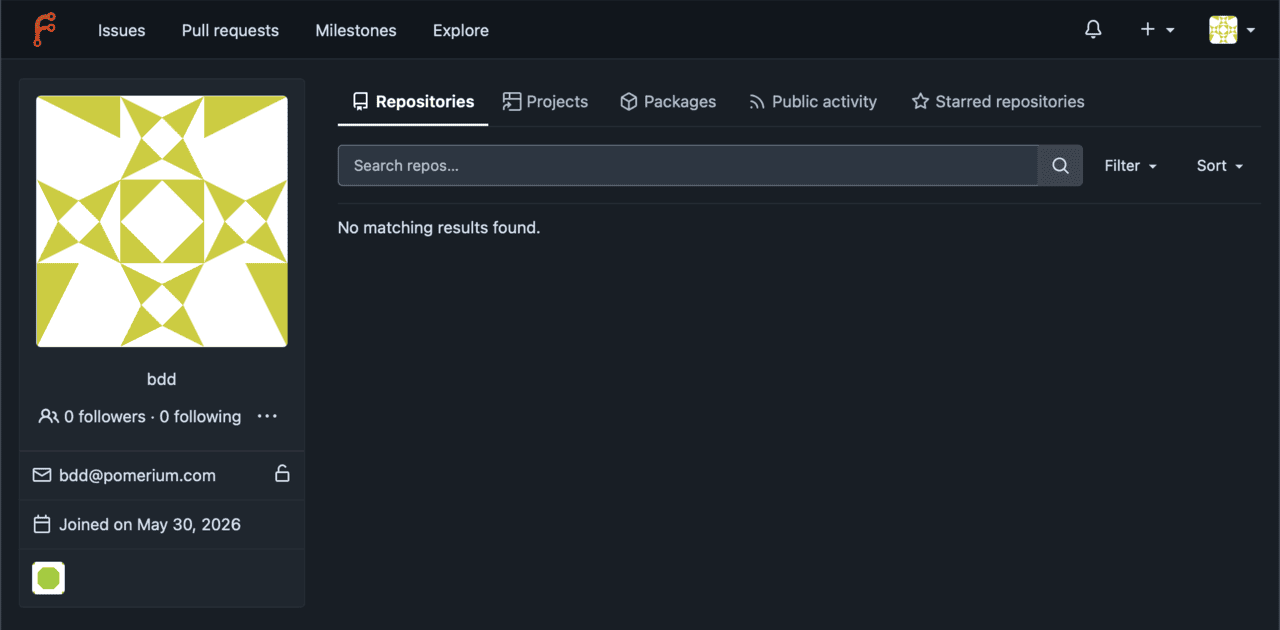

    The auto-provisioned Forgejo profile page, with the username and email carried over from the Pomerium SSO identity

  4. A disallowed user is blocked. Sign in as a user your policy excludes and open https://forgejo.yourdomain.com. Pomerium denies access, so no identity headers are forwarded and Forgejo never provisions an account.

The first account Forgejo provisions becomes the instance administrator, so sign in through Pomerium first with the identity that should own Forgejo.

Common failure modes​

  • Pomerium returns 403. The route policy still allows only the example user. Replace it with your user or domain.
  • You reach Forgejo but aren't signed in or auto-provisioned. The header names in Pomerium (jwt_claims_headers) and in Forgejo (REVERSE_PROXY_AUTHENTICATION_USER / _EMAIL / _FULL_NAME) must match exactly, and pass_identity_headers must be set on the route.
  • Sign-in fails on the username. Forgejo rejects usernames containing characters such as @. Use a stable, already-valid claim for the username (this guide uses sub).
  • A direct request to the backend signs in. Expected: reverse-proxy auth trusts the header from any peer. It's why Forgejo must stay reachable only through Pomerium.

Security considerations​

Reverse-proxy authentication means Forgejo trusts the identity header from any peer that can reach it. Forgejo does not verify Pomerium's signed X-Pomerium-Jwt-Assertion for login, and REVERSE_PROXY_TRUSTED_PROXIES does not gate which peer the header is trusted from. So network isolation is the only trust boundary: Forgejo must be reachable only through Pomerium.

Two properties make this safe, and only these two:

  • Through Pomerium, a forged header is overwritten. For each claim it forwards, Pomerium sets the header from the real authenticated user, so a client that forges X-Pomerium-Sub or X-Pomerium-Claim-Email through Pomerium is still signed in as its own identity, never the forged one. The username (sub) and email are always present, so they pin the account. The only soft spot is an optional claim Pomerium doesn't emit for a given user (for example name, when the token carries none): a forged X-Pomerium-Claim-Name could pass through, but the worst case is a wrong display name, not a different account.
  • Direct access must be impossible. The risk is a client that bypasses Pomerium and talks to Forgejo directly: it can set those headers itself and impersonate anyone (the first such account would even become admin). Keep Forgejo on a network where only Pomerium can reach it.

To hold up that boundary:

  • Don't publish Forgejo's port. In Docker Compose, keep only Pomerium on Forgejo's network and never map 3000 to the host. Confirm the only containers on the network are Pomerium and Forgejo: docker network inspect forgejo-pomerium --format '{{range .Containers}}{{.Name}} {{end}}'.
  • In Kubernetes, a ClusterIP service alone isn't enough if arbitrary pods can connect to Forgejo. Use a policy-enforcing CNI and a NetworkPolicy (or another network control) to admit only Pomerium to the backend.
  • REVERSE_PROXY_TRUSTED_PROXIES is not a security control for this. It only affects X-Forwarded-For parsing, not which peer the identity header is trusted from. Set it to Pomerium's IP/CIDR (never a hostname) for correct client-IP logging, but treat network isolation as the real boundary.
  • Keep a break-glass admin. Because the local sign-up form is closed and every request arrives pre-authenticated, create a recovery admin out of band: docker compose exec -u git forgejo forgejo admin user create --username recovery-admin --email recovery-admin@example.com --random-password --admin. To use it, reach Forgejo without Pomerium's injected header (a trusted network, or temporarily setting ENABLE_REVERSE_PROXY_AUTHENTICATION to false).
