DNS

This reference covers all of Pomerium's DNS Settings:

• Failure Refresh Rate
• Lookup Family
• Query Timeout
• Query Tries
• Refresh Rate
• UDP Max Queries
• Use TCP

Failure Refresh Rate

Failure Refresh Rate sets the DNS refresh rate when requests are failing.

How to Configure

Core

Config file keys	Environment variables	Type	Default
dns_failure_refresh_rate	DNS_FAILURE_REFRESH_RATE	string (Go Duration formatting)	5s

Examples

dns_failure_refresh_rate: 10s

Enterprise

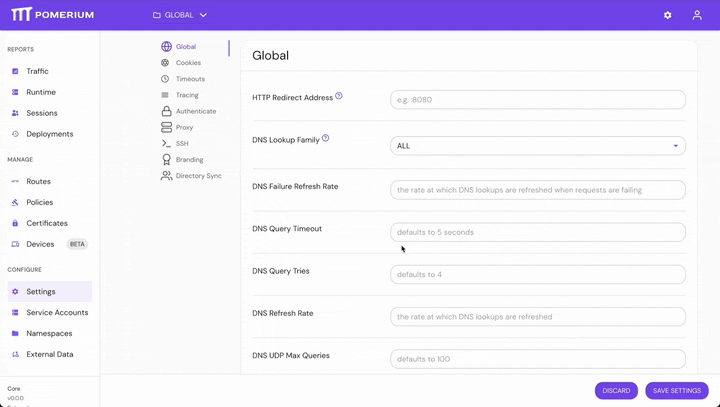

Set Failure Refresh Rate in the Console:

Kubernetes

dns:
  failureRefreshRate: 10s

Lookup Family

Lookup Family sets the DNS IP address resolution policy.

How to Configure

Core

Config file keys	Environment variables	Type	Default
dns_lookup_family	DNS_LOOKUP_FAMILY	string	V4_PREFERRED

Examples

default_lookup_family: AUTO

DEFAULT_LOOKUP_FAMILY=V6_ONLY

Enterprise

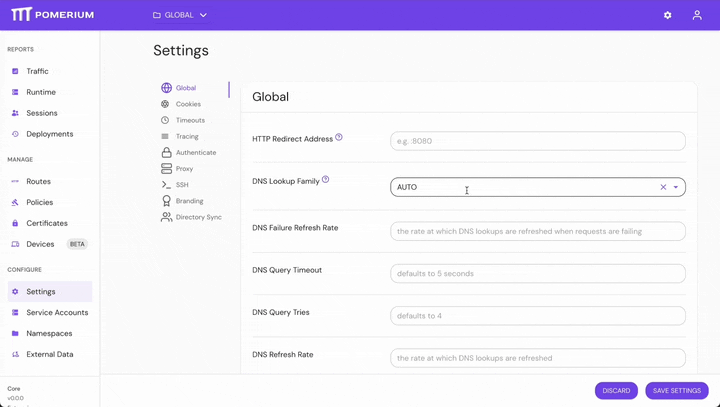

Set Lookup Family in the Console:

Kubernetes

dns:
  lookupFamily: V6_ONLY

Options

Options	Description
DEFAULT (Enterprise only)	Defers to configuration settings or default if none specified
AUTO	DNS resolver will first perform a lookup for addresses in the IPv6 family and fallback to a lookup for addresses in the IPv4 family
V4_ONLY	DNS resolver will only perform a lookup for addresses in the IPv4 family
V6_ONLY	DNS resolver will only perform a lookup for addresses in the IPv6 family
V4_PREFERRED	DNS resolver will first perform a lookup for addresses in the IPv4 family and fallback to a lookup for addresses in the IPv6 family
ALL	DNS resolver will perform a lookup for both IPv4 and IPv6 families, and return all resolved addresses

See the Envoy docs for more information about these options.

Query Timeout

Query Timeout sets the timeout for DNS queries.

How to Configure

Core

Config file keys	Environment variables	Type	Default
dns_query_timeout	DNS_QUERY_TIMEOUT	string (Go Duration formatting)	5s

Examples

dns_query_timeout: 10s

Enterprise

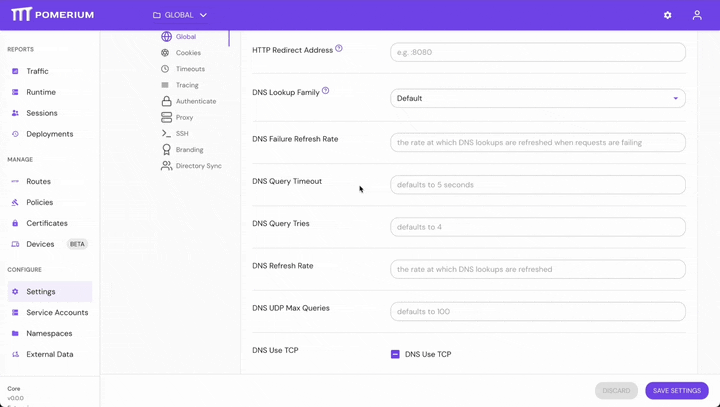

Set Query Timeout in the Console:

Kubernetes

dns:
  queryTimeout: 10s

Query Tries

Query Tries sets the number of times a DNS query will be re-tried.

How to Configure

Core

Config file keys	Environment variables	Type	Default
dns_query_tries	DNS_QUERY_TRIES	integer	4

Examples

dns_query_tries: 7

Enterprise

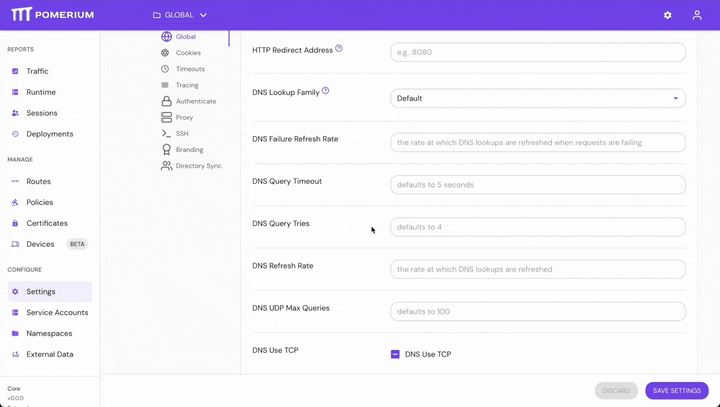

Set Query Tries in the Console:

Kubernetes

dns:
  queryTries: 7

Refresh Rate

Refresh Rate sets the DNS refresh rate.

How to Configure

Core

Config file keys	Environment variables	Type	Default
dns_refresh_rate	DNS_REFRESH_RATE	string (Go Duration formatting)	DNS record TTL, or 5s if not set

Examples

dns_refresh_rate: 10s

Enterprise

Set Refresh Rate in the Console:

Kubernetes

dns:
  refreshRate: 10s

UDP Max Queries

UDP Max Queries sets the maximum number of queries before a new UDP port is opened.

How to Configure

Core

Config file keys	Environment variables	Type	Default
dns_udp_max_queries	DNS_UDP_MAX_QUERIES	integer	100

Examples

dns_udp_max_queries: 100

Enterprise

Set UDP Max Queries in the Console:

Kubernetes

dns:
  udpMaxQueries: 100

Use TCP

Use TCP configures Pomerium to use TCP instead of UDP for DNS queries.

How to Configure

Core

Config file keys	Environment variables	Type	Default
dns_use_tcp	DNS_USE_TCP	boolean	false

Examples

dns_use_tcp: true

Enterprise

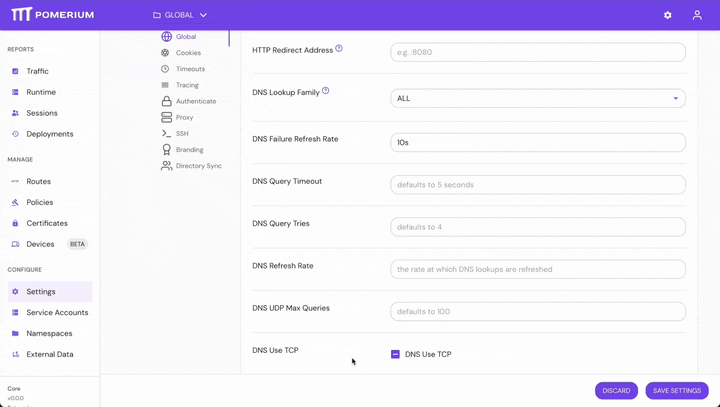

Set Use TCP in the Console:

Kubernetes

dns:
  useTcp: true
