Secure OpenClaw Gateway with Pomerium

This guide shows you how to deploy OpenClaw (formerly Clawdbot/Moltbot) gateway behind Pomerium for secure, authenticated access. OpenClaw is an open-source personal AI assistant that features persistent memory, system access (file operations, shell commands), browser automation, and supports multiple chat platforms. In this guide, we'll deploy it in a Docker container on your deployment host.

Security Scope

OpenClaw is not production-ready software and has known security limitations. This guide secures access to OpenClaw (SSH and gateway portal) using Pomerium's identity-aware proxy, but does not address OpenClaw's internal security model. For details on OpenClaw's security considerations, see the OpenClaw Gateway Security documentation.

What Pomerium Secures:

• User authentication and identity verification
• Access control to SSH and gateway endpoints
• Network-level protection

What This Guide Does NOT Secure:

• OpenClaw's internal operations and tool execution
• Code or commands run by authenticated users
• Subagent isolation (configurable via sandboxing - see below)

This guide configures sandboxing as a starting point. You can adjust OpenClaw's security model based on your risk tolerance and use case. See the OpenClaw sandboxing documentation for customization options.

What You'll Build

By the end of this guide, you'll have:

• Complete stack: Pomerium + OpenClaw running in Docker
• Identity-aware proxy: Pomerium verifies user identity through your identity provider (Google, Okta, Azure AD, etc.) and enforces access policies on every request to the gateway
• SSH access: Secure SSH access to the OpenClaw container via Pomerium SSH routes
• Persistent storage: OpenClaw configuration and workspace data that survives container restarts
• Full Docker sandboxing: Subagents run in isolated containers for enhanced security

Before You Start

To complete this guide, you need:

• A Pomerium Zero account (free)
• A deployment machine (VPS, bare metal server, or local machine) with:
  • Docker and Docker Compose installed
  • Ports 443 and 2200 accessible (see Network Requirements below)

Network Requirements

Your deployment host must meet these network requirements:

• Port 443 accessible from the internet - Users connect to Pomerium on this port for HTTPS traffic
  • Configure your firewall to allow inbound traffic on port 443
  • If using a cloud provider (AWS, GCP, Azure, DigitalOcean, etc.), ensure security groups/firewall rules allow port 443
• Port 2200 accessible from the internet - Pomerium SSH traffic uses this port
  • Configure your firewall to allow inbound traffic on port 2200
  • Required for SSH access to the OpenClaw container and any other SSH routes
  • Note: Port 2200 is configurable in Pomerium - you can use any available port except 22 (which would conflict with the standard SSH port)
• Outbound connectivity - The host must be able to reach the managed control plane (Pomerium Zero) at console.pomerium.app

note

Pomerium provides zero-trust access without requiring traditional VPN infrastructure.

Step 1: Set Up Pomerium Zero

Before deploying the Docker stack, you'll need a Pomerium Zero account and cluster.

1. Create a Pomerium Zero account at pomerium.com (free)

2. During cluster creation, select Docker as your setup method

3. Configure a custom identity provider (required for SSH access)

   Required for SSH Access

   Soon you'll be able to use the Pomerium hosted authenticate service, but for now you must configure a custom identity provider in order to use native SSH routes.

   During the onboarding wizard:

   • Select a custom identity provider (Google, Okta, Azure AD, GitHub, etc.)
   • Complete the provider configuration steps
   • Save your provider credentials

   For detailed instructions, see Configuring a Custom Identity Provider in Pomerium Zero.

4. The onboarding wizard will provide:

   • Your POMERIUM_ZERO_TOKEN
   • Your cluster domain (e.g., fantastic-fox-1234.pomerium.app)

5. Save both the token and your cluster domain for the next step

Ignore the Docker Compose File

The Pomerium Zero onboarding will provide you with a docker-compose file. You don't need it - the openclaw-pomerium-guide repository (cloned in Step 2) already includes the necessary docker-compose setup. Just save your POMERIUM_ZERO_TOKEN and cluster domain for the next step.

tip

Your Pomerium Zero cluster comes with a built-in *.pomerium.app domain that you can use immediately. You can configure a custom domain later if preferred.

Step 2: Clone and Configure the Repository

1. Clone the repository to your deployment host:

   # via git clone
   git clone https://github.com/pomerium/openclaw-pomerium-guide

   # or via GitHub CLI
   gh repo clone pomerium/openclaw-pomerium-guide

   cd openclaw-pomerium-guide

   All subsequent setup commands should be run from this directory.

2. Configure environment variables:

   cp .env.example .env

3. Edit .env and set your values:

   .env

   # Your Pomerium Zero token from the onboarding wizard
   POMERIUM_ZERO_TOKEN=your-token-here

   # Your cluster subdomain (e.g., fantastic-fox-1234.pomerium.app)
   POMERIUM_CLUSTER_DOMAIN=fantastic-fox-1234.pomerium.app

   # OpenClaw version (optional, defaults to `latest`)
   OPENCLAW_VERSION=2026.2.6

Step 3: Generate SSH Keys for Pomerium SSH Access

The openclaw-pomerium-guide repository's Dockerfile includes an SSH server that allows you to remotely access the OpenClaw container via Pomerium SSH routes. You'll need to generate SSH keys for this functionality.

Quick Setup (Recommended)

For automated setup, use the provided script:

./setup-ssh.sh

The script will:

• Generate all required SSH keys (User CA and Host keys)
• Install the User CA public key in the openclaw-gateway container
• Optionally configure the host SSH daemon to trust Pomerium CA (recommended for jump box access via Pomerium)
• Display instructions for Pomerium Zero configuration
• Show all private keys needed for Pomerium

Manual Setup

If you prefer to set up SSH manually, follow these steps:

Generate SSH Keys

Generate all keys in the repository root following the Pomerium Native SSH Access guide:

# User CA key pair (used by Pomerium to sign SSH certificates)
ssh-keygen -N "" -f pomerium_user_ca_key -C "Pomerium User CA"

# Host keys (for different SSH algorithms)
ssh-keygen -t ed25519 -f ssh_host_ed25519_key -N ""
ssh-keygen -t rsa -b 3072 -f ssh_host_rsa_key -N ""
ssh-keygen -t ecdsa -b 256 -f ssh_host_ecdsa_key -N ""

Security Note

All private keys stay in the repository root. Only the User CA public key will be copied to the container.

Install User CA Public Key

Copy the User CA public key to the container mount location:

# Copy to container mount
cp pomerium_user_ca_key.pub ./openclaw-data/pomerium-ssh/

The container is configured to trust certificates signed by this CA.

Optional: Configure Host SSH Access

If you want to SSH directly to the host machine via Pomerium (useful as a jump box), configure the host SSH daemon:

# Copy to system SSH directory
sudo cp pomerium_user_ca_key.pub /etc/ssh/pomerium_user_ca_key.pub
sudo chmod 644 /etc/ssh/pomerium_user_ca_key.pub

# Configure SSH daemon to trust it
echo "TrustedUserCAKeys /etc/ssh/pomerium_user_ca_key.pub" | sudo tee -a /etc/ssh/sshd_config

# Restart SSH daemon
sudo systemctl restart sshd

For security, create a dedicated non-root user for SSH access:

# Create user (example: clawadmin)
sudo useradd -m -s /bin/bash clawadmin

# Optional: Add to sudo group if you need admin privileges
sudo usermod -aG sudo clawadmin

Step 4: Start the Docker Stack

Start all services with Docker Compose:

docker compose up -d

Note: The first run will build the OpenClaw image, which may take a few minutes.

❯ docker compose build openclaw-gateway
[+] Building 2.8s (5/10)
 => [internal] load local bake definitions                                0.0s
 => => reading from stdin 640B                                            0.0s
 => [internal] load build definition from Dockerfile                      0.0s
 => => transferring dockerfile: 1.81kB                                    0.0s
 => [internal] load metadata for docker.io/library/node:24-slim           0.1s
 => [internal] load .dockerignore                                         0.0s
 => => transferring context: 2B                                           0.0s
 => CACHED [1/6] FROM docker.io/library/node:24-slim@sha256:4660b1ca8b28  0.0s
 => [2/6] RUN apt-get update &&     apt-get install -y git openssh-serve  2.6s
 => => # Get:91 http://deb.debian.org/debian bookworm/main amd64 psmisc amd64
 => => # 23.6-1 [259 kB]
 => => # Get:92 http://deb.debian.org/debian bookworm/main amd64 publicsuffix
 => => # all 20230209.2326-1 [126 kB]
 => => # Get:93 http://deb.debian.org/debian bookworm/main amd64 xauth amd64 1
 => => # :1.1.2-1 [36.0 kB]
[+] build 0/1
 ⠙ Image openclaw:2026.2.6 Building                                        2.8s

Custom Docker Image

Since OpenClaw doesn't provide an official Docker image, the openclaw-pomerium-guide repository includes a custom Dockerfile that packages OpenClaw with an SSH server. This Dockerfile can be customized to add additional tools or utilities you need. For example, you might want to add:

• Development tools (git, vim, etc.)
• Language runtimes (Node.js, Python, etc.)
• CLI utilities specific to your workflow

Simply edit openclaw/Dockerfile and rebuild with docker compose up -d --build.

Verify all services are running:

docker compose ps

You should see three services running:

• pomerium - The authentication proxy (port 443)
• verify - Pomerium's verification service
• openclaw-gateway - The OpenClaw gateway container

❯ docker ps
CONTAINER ID   IMAGE                       COMMAND                  CREATED          STATUS                          PORTS     NAMES
a6882babc788   pomerium/pomerium:v0.32.0   "/bin/pomerium --con…"   47 seconds ago   Restarting (1) 18 seconds ago             openclaw-pomerium-pomerium-1
d03c1849ab7d   pomerium/verify:latest      "/bin/verify"            47 seconds ago   Up 47 seconds (healthy)                   openclaw-pomerium-verify-1
190520ccdc2f   openclaw:2026.2.3          "docker-entrypoint.s…"   47 seconds ago   Up 47 seconds (healthy)         22/tcp    openclaw-pomerium-openclaw-gateway-1

Step 5: Configure Pomerium SSH Routes

Now configure SSH routes in Pomerium Zero to access your OpenClaw container.

Configure Global SSH Settings (First-Time Only)

If this is your first SSH route you're creating in Pomerium Zero or you haven't configured SSH in your Pomerium cluster's main settings, you'll need to configure global SSH settings as part of the route creation process.

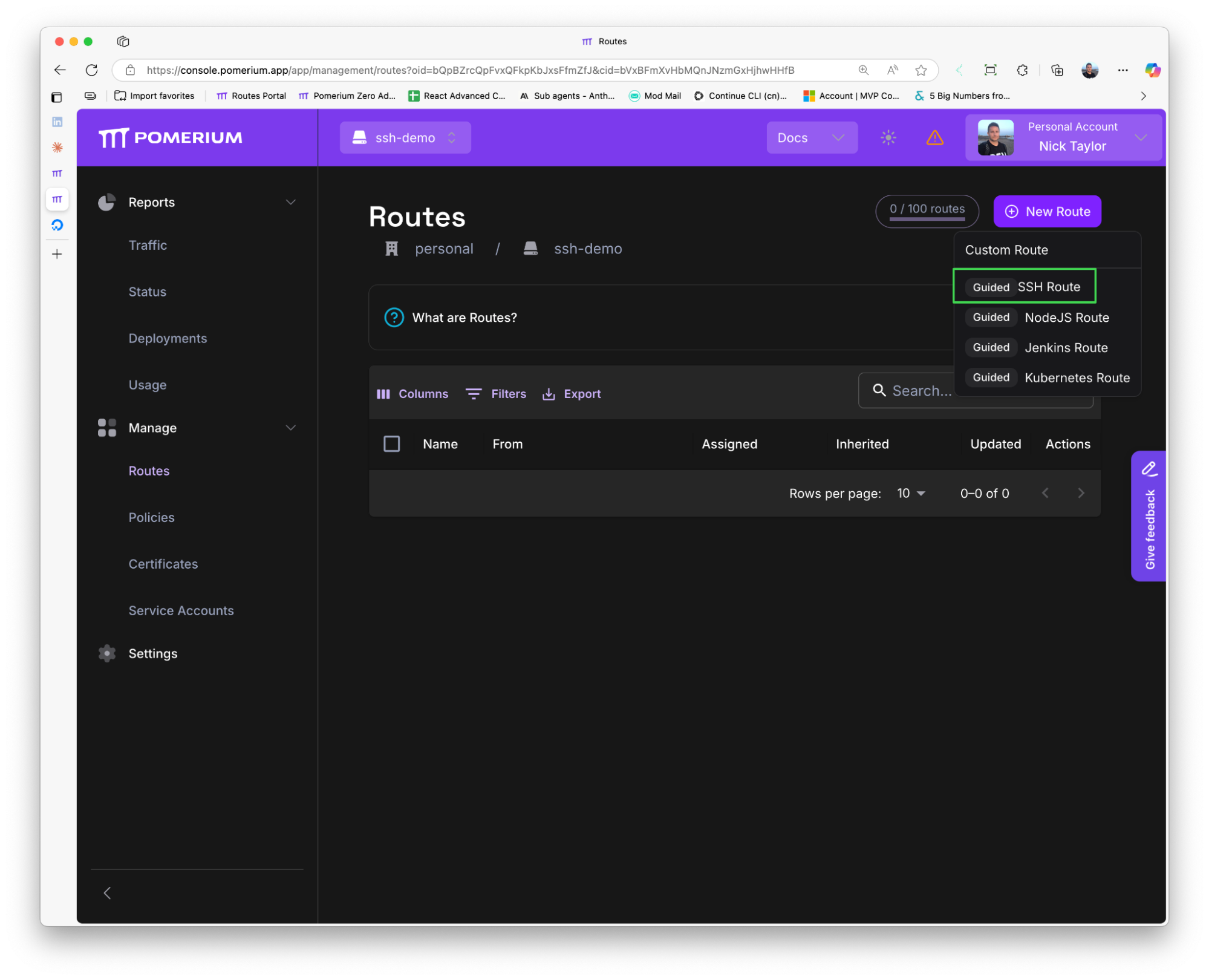

1. Navigate to Manage → Routes in the Pomerium Zero console



2. Click New Route → Guided SSH Route

   • Configure global SSH settings:



   • SSH Address: 0.0.0.0:2200

   • SSH Host Keys: Paste all three private host keys from your repository root:

     • Contents of ssh_host_ed25519_key
     • Contents of ssh_host_rsa_key
     • Contents of ssh_host_ecdsa_key



   • SSH User CA Key: Paste the contents of pomerium_user_ca_key (private key)



note

These are cluster-wide settings shared by all SSH routes. If you've already configured SSH for your cluster, these steps won't be shown.

For detailed SSH configuration instructions, see the Pomerium Zero Native SSH Configuration Guide.

Create SSH Route to OpenClaw Container

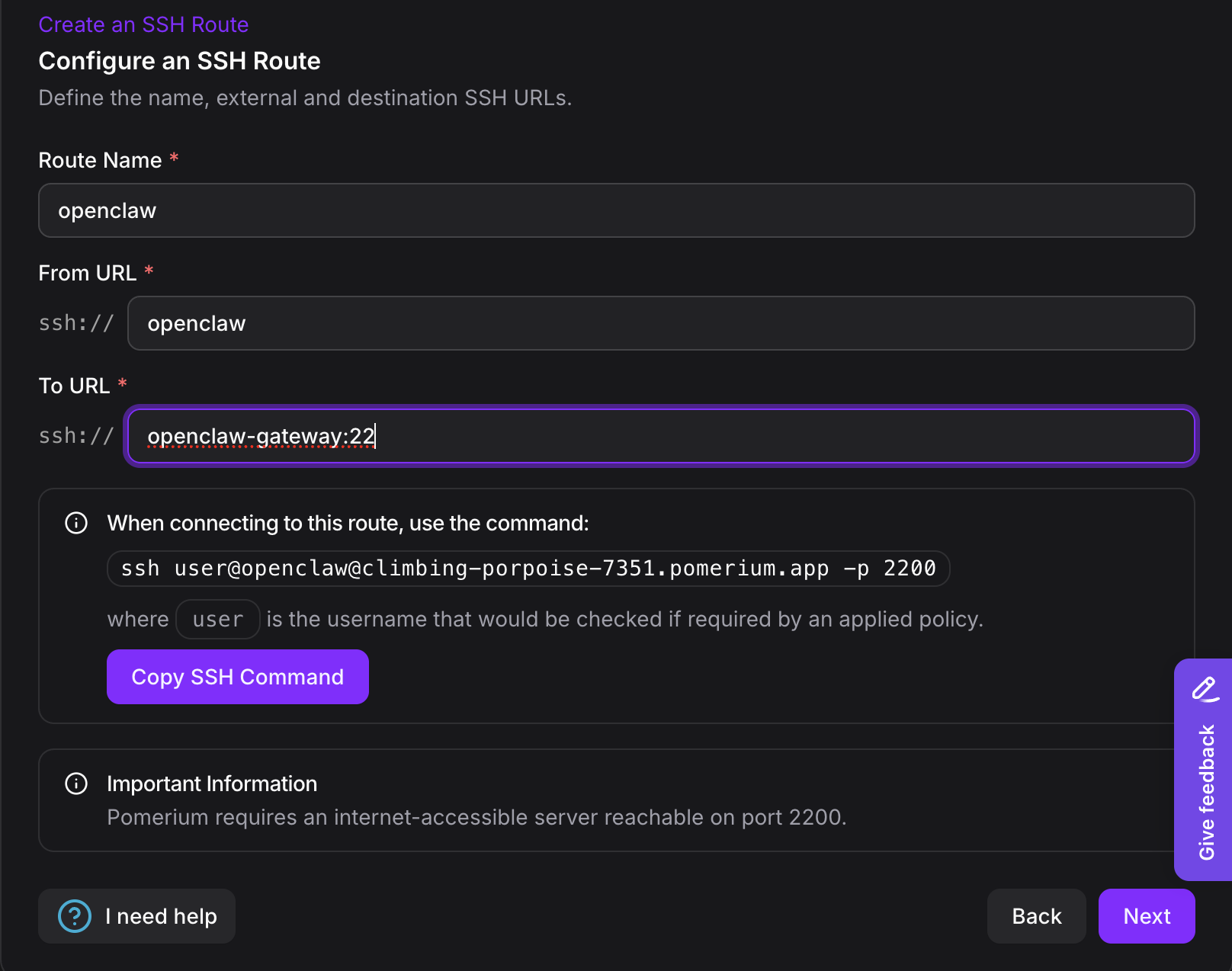

1. Create a new Guided SSH Route with the following settings:

   • Name: openclaw (or your preferred name)
   • From URL: ssh://openclaw
   • To URL: ssh://openclaw-gateway:22

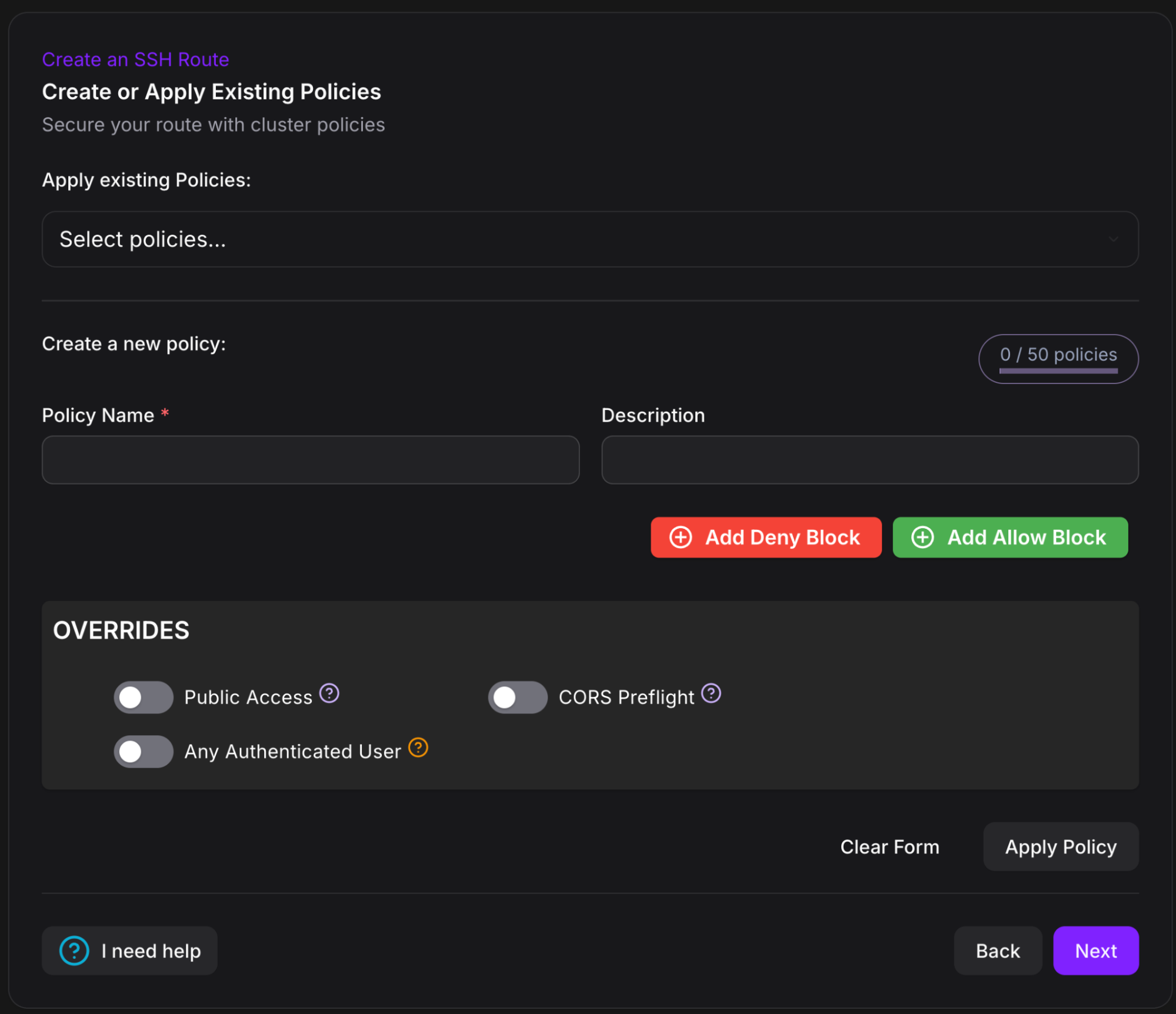

   • Access Policies: Configure who can connect (e.g., allow your email address)



2. Save and apply the route

Optional: Create SSH Route to Host Machine

If you configured host SSH access in Step 3, create another route for the host:

1. Create another Guided SSH Route:

   • Name: jumpbox
   • From URL: ssh://jumpbox
   • To URL: ssh://host.docker.internal:22
   • Access Policies: Configure who can connect

2. Save and apply the route

Step 6: Configure OpenClaw

Now that SSH access is configured, connect to the container and set up OpenClaw.

Connect via SSH

SSH into the OpenClaw container via your Pomerium SSH route:

# note: use the container username 'claw' not 'root'
ssh claw@openclaw@your-cluster.pomerium.app -p 2200

Replace your-cluster.pomerium.app with your actual Pomerium Zero cluster domain.

Pomerium will prompt you to authenticate via your identity provider, then connect you to the container.

Configure OpenClaw Authentication

Inside the container, run the OpenClaw configuration wizard:

openclaw configure

This will guide you through setting up authentication for Claude API access. The configuration method depends on your model provider (API key, browser login, etc.).

Get the Gateway Token

Retrieve the gateway authentication token (needed for client connections):

openclaw config get gateway.auth.token

caution

Change the default auth token (configure-gateway-token) before allowing access. You can update it with:

openclaw config set gateway.auth.token "your-secure-token-here"

Step 7: Configure Gateway Web Interface Route

To access the OpenClaw gateway website in your browser, create a route in Pomerium Zero with WebSocket support enabled.

1. Navigate to Manage → Routes in Pomerium Zero

2. Click New Route → Custom Route

3. Configure the route:

   • From: https://openclaw.your-cluster.pomerium.app
   • To: http://openclaw-gateway:18789
   • Policies: Configure access policies for who can connect



4. Enable WebSocket support (required for the web interface to function):

   • Go to Advanced → Timeouts
   • Enable WebSocket support

5. Save and apply the route

note

WebSocket support is required for the OpenClaw gateway web interface to work properly. Without it, the web UI will fail to connect to the gateway.

For more information on WebSocket configuration, see the Pomerium timeouts documentation.

Once configured, you can access the OpenClaw gateway at https://openclaw.your-cluster.pomerium.app in your browser.

Step 8: Approve Device Pairing

OpenClaw requires device pairing for security. Each new device or browser must be explicitly approved before connecting.

What Triggers Device Pairing

Device pairing is required for:

• New browsers (Chrome on your laptop is different from Firefox)
• New devices (phone, colleague's computer, etc.)
• Incognito/private browsing windows
• Cleared browser cache

Approve Pairing Requests

For more information on device pairing, see the OpenClaw pairing documentation.

When someone tries to connect for the first time:

1. List pending requests (via SSH):

   ssh claw@openclaw@your-cluster.pomerium.app -p 2200
   openclaw devices list

   You'll see output showing pending device requests. Copy the <request-id> for the device you want to approve.

2. Approve the request:

   openclaw devices approve <request-id>

3. The user can now refresh their browser and connect without seeing the pairing error.

Why Pairing with Pomerium?

• Pomerium authenticates the user (who you are)
• Device pairing authorizes the device (which devices that user can use)

This provides defense-in-depth: even if someone steals a user's Pomerium credentials, they can't access OpenClaw from a new device without admin approval.

Configuration

OpenClaw configuration is persisted in ./openclaw-data/config/.openclaw/openclaw.json. The repository includes a starting configuration with:

• Gateway port: 18789
• Auth token: configure-gateway-token (change this!)
• Workspace: /home/claw/workspace
• Bind mode: lan (accessible from network)
• Sandbox mode: non-main (main agent unsandboxed, subagents sandboxed)
• Workspace access for sandboxed agents: none

Updating Configuration

Access the container and use OpenClaw commands:

# Access container via SSH or docker exec
ssh claw@openclaw@your-cluster.pomerium.app

# Run OpenClaw configuration
openclaw configure

Sandbox Configuration

The repository includes a pre-configured openclaw.json with sandboxing as a reasonable starting point for personal use behind Pomerium. You can adjust these settings based on your security requirements and risk tolerance.

Starting Configuration: non-main sandbox mode

Located in ./openclaw-data/config/.openclaw/openclaw.json:

• Main agent runs directly on the gateway container (enables WebFetch/network tools)
• Spawned subagents run in isolated Docker containers
• Sandboxed agents have no workspace access (workspaceAccess: "none")
• Sandbox scope: session (containers cleaned up after session ends)

Tool Restrictions (Sandboxed Agents)

• Command execution: exec, process
• Browser/UI tools: browser, canvas, nodes
• System management: gateway, cron
• Messaging integrations: telegram, whatsapp, discord, slack, signal, imessage

Security Trade-offs:

Advantages:

• WebFetch and WebSearch work (main agent has network access)
• Subagents are fully sandboxed
• Behind Pomerium authentication
• Most dangerous operations blocked

Considerations:

• Main agent runs direct (not sandboxed) - necessary for WebFetch
• Docker socket access required for sandboxing
• Suitable for personal/authenticated use behind Pomerium
• For multi-tenant/public deployments, consider mode: all (full isolation)

Customizing Security:

You have full control over OpenClaw's security model. To adjust sandbox configuration:

# Change sandbox mode (options: non-main, all, off)
openclaw config set 'agents.defaults.sandbox.mode' 'all'

# Update tool deny list
openclaw config set 'tools.sandbox.tools.deny' '["exec","process","browser"]' --json

# Disable sandboxing entirely (not recommended)
openclaw config set 'agents.defaults.sandbox.mode' 'off'

Your Security, Your Choice

The sandboxing configuration in this guide balances functionality with security for personal use. You can:

• Increase security: Use mode: all to sandbox everything, though this limits functionality
• Decrease security: Loosen restrictions or disable sandboxing if you trust all authenticated users

Pomerium ensures only authorized users reach OpenClaw, but what they can do inside is up to you.

For complete security details and sandboxing options, see the OpenClaw sandboxing documentation.

Troubleshooting

Check Container Status

# View all containers
docker compose ps

# View logs
docker compose logs -f openclaw-gateway

# View recent logs
docker compose logs --tail=100 openclaw-gateway

Configuration Issues

# Access container and run diagnostics
ssh claw@openclaw@your-cluster.pomerium.app
openclaw doctor

SSH Connection Issues

• Verify the User CA public key is in ./openclaw-data/pomerium-ssh/
• Check file permissions are 600 on private keys
• Confirm the SSH route is configured correctly in Pomerium Zero
• Test with verbose SSH: ssh -v claw@openclaw@your-cluster.pomerium.app
• Enable SSH server debugging: Set LogLevel DEBUG3 in /etc/ssh/sshd_config and check logs

WebSocket Connection Issues

If you see "pairing required" errors:

1. This is normal for first-time connections
2. Check for pending pairing requests:

   ssh claw@openclaw@your-cluster.pomerium.app
   openclaw devices list

3. Approve the pending request
4. Refresh your browser/client

Gateway Not Starting

Check the container logs for errors:

docker compose logs openclaw-gateway

Common issues:

• Port 18789 already in use
• Invalid configuration in ./openclaw-data/config/
• Missing User CA public key in ./openclaw-data/pomerium-ssh/

Persistent Data

Data is persisted in the ./openclaw-data/ directory:

• ./openclaw-data/config/ - OpenClaw configuration files
• ./openclaw-data/workspace/ - Agent workspace (mounted at /claw/workspace)
• ./openclaw-data/pomerium-ssh/ - Pomerium User CA public key

Backup Your Data

Regularly backup the ./openclaw-data/ directory to prevent data loss.

Next Steps

• Configure advanced policies for granular access control
• Set up custom domains instead of *.pomerium.app
• Explore OpenClaw documentation for advanced features

Additional Resources

• Pomerium Zero Native SSH Configuration Guide
• Pomerium Native SSH Access
• Pomerium Policy Language (PPL)
• OpenClaw
• OpenClaw Security Guidelines
